IEI 威强电推出全新 AFL3-W22C-ULT3 轻工业交互式平板电脑
 特征 |
| |
|
 |
W21.5 轻工业交互式平板电脑 |
|
9 V ~ 30 V 宽量程直流电源输入 |
|
可选 AT/ATX 电源模式 |
|
内置扬声器 |
|
一个 mSATA 插槽 |
|
前面板符合 IP64 防护等级 |
|
IEI 一键恢复解决方案使您快速创建操作系统备份和恢复。(建议有超过4GB的存储容量) |
|
 |

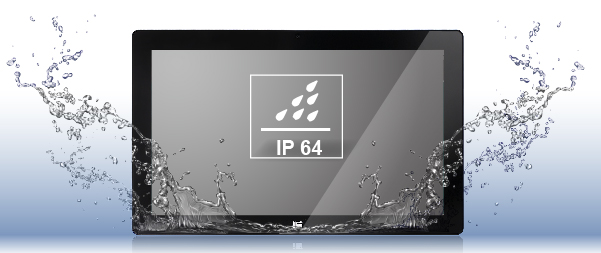

| 防水前面板 |
| |
|
| AFL3-W22C-ULT3 具有 IP64 防水前面板，外观时尚，面板光滑，便于维护。 |
 |
|
|
| 规格 |
| |
|
| 型号 |
AFL3-W22C-ULT3 |
| LCD |
尺寸 |
21.5” |
| 分辨率 |
1920 x 1080 |
| 亮度(cd/m²) |
250 |
| 对比度 |
1000:1 |
| LCD 色彩 |
16.7M |
| 像素间距 (mm) |
248.25 (H) × 248.25 (V) |
| 可视角度 (H-V) |
170º/160º |
| 背光源 MTBF (hrs) |
30,000 (LED backlight panel) |
| 触摸 |
触摸屏 |
Projected capacitive type with USB interface |
| 触摸控制器 |
EETI EXC3180 |
| 主板 |
CPU |
Intel® Core™ i5 and Celeron® ULT Processor |
| RAM |
Two 260-pin 2133/1867 MHz dual-channel
DDR4 SO-DIMMs (system max. 32 GB) |
| Ethernet |
2 x Intel® I211-AT PCIe GbE controller |
| 音频编解码器 |
ALC892 |
| 存储 |
(1) 1 x 2.5” SATA 3Gb/s HDD bay
(2) 1 x M.2 M key PCIe storage (2280 or 22110)
(3) 1 x mSATA slot |
| I/O 端口&开关 |
1 x RS-232 by DB-9 (RI/5V/12V)
1 x RS-232/422/485 by DB-9 (RI/5V/12V)
2 x GbE LAN
4 x USB 3.0
1 x HDMI output
1 x Power switch
1 x Reset button
1 x AT/ATX switch
1 x 9-30V lockable power jack |
| 音频 |
AMP 3W + 3W (internal speaker) |
| 摄像头和麦克风 |
2-megapixel with low light function, digital microphone |
| 无线网&蓝牙 |
IEEE 802.11a/b/g/n/ac, Bluetooth v4.0 (M.2 slot) |
| OSD 功能 |
Software OSD |
| 物理属性 |
前面板材质 |
PC + ABS Plastic |
| 安装方式 |
Panel, Wall, Stand and Arm VESA 75mm x 75mm / 100mm x 100mm |
| 颜色 |
Black C |
| 尺寸 (W x H x D) (mm) |
528 x 336 x 68 |
| 开孔尺寸 (W x H) (mm) |
502 x 303 |
| 净/毛重 (kgs) |
8.27/11.27 |
| 环境 |
工作温度
(周围环境有空气流通) |
-20ºC ~ 50ºC |
| 存储温度 |
-20ºC ~ 60ºC |
| 湿度 |
10% to 95% (non-condensing) |
| IP 等级 |
IP 64 compliant front panel |
| 安规&EMC |
CE / FCC |
| 散热解决方案 |
Fanless |
| 电源 |
电源要求 |
9 V ~ 30 VDC |
| 功耗 |
12V@6A
(Intel® Core™ i5-6300U CPU with 4GB DDR42133 MHz DDR4 memory) |
|
|
| I/O 接口 |
| |
|
|
|
|
| 订购信息 |
| |
|
| 料号 |
描述 |
| AFL3-W22C-ULT3-C/PC/4G-R10 |
Wide 21.5” 250 cd/m² 1920x1080 panel PC with 6th generation 14nm Intel® mobile Celeron® 3955U (15W) on-board processor (ULT), one 4GB DDR4 RAM, 802.11a/b/g/n/ac Wi-Fi module, PCAP touch, 2-megapixel camera, microphone, R10 |
| AFL3-W22C-ULT3-i5/PC/4G-R10 |
Wide 21.5” 250 cd/m² 1920x1080 panel PC with 6th generation 14nm Intel® mobile Core™ i5-6300U (15W) on-board processor (ULT), one 4GB DDR4 RAM, 802.11a/b/g/n/ac Wi-Fi module, PCAP touch, 2-megapixel camera, microphone, R10 |
|
|
 可选配件 |
| |
|
| 项目 |
AFL3-W22C-ULT3 |
| Panel Mounting Kit |
AFL3PK-W22C-R10 |
| Wall Mounting Kit |
AFLWK-19B |
| Arm |
ARM-11-RS/ARM-31-RS |
| Stand |
STAND-A21-R10/ STAND-210-R11/STAND-A19-RS/STAND-C19-R10 |
| Magnetic Card Reader |
AFL3P-W10MSR-U-R10 |
| Barcode Scanner |
AFL3-2D-R11 |
| RFID Reader (13.56 MHz Mifare Type) (For ATO assembly) |
AFL3-MF-RFID-KIT02-R10 |
| *OS: Win 7 Embedded (64-bit) |
AFL3-W15C-ULT3-WES7P64-R10 |
| *OS: Win 10 IOT Enterprise (64-bit) |
AFL3-W15C-ULT3-W10E64-R10 |
*OS image with CD-ROM without storage
E-Window (用于ATO组装)
|
| 料号 |
描述 |
| E-MPCIE-LAN02-R10 |
PCIe Mini card supports 1-port GbE with Realtek RTL8111E controller, with PMS 194C I/O bracket and 340 mm cable, R10 |
| E-MPCIE-CClink02-R10 |
PCIe Mini card supports CC-Link Slave interface according to V2.0 and V1.1, with PMS black C I/O bracket and 300mm cable, R10 |
| E-MPCIE-PROFIBUS02-R10 |
PCIe Mini card supports universal PROFI BUS DP card for Master or Slave, with PMS black C I/O bracket and 300mm cable, R10 |
| E-MPCIE-EtherCAT-R10 |
PCIe Mini card supports universal for all Real-Time Ethernet protocols, with PMS black C I/O bracket and 280mm cable, R10 |
| E-MPCIE-3G-R10 |
PCIe Mini card supports 3G WWAN , with PMS 130C I/O bracket, RF antenna 300mm cable and GSM antenna cable, R10 |
|
|
| 包装清单 |
| |
|
| 项目 |
料号 |
数量 |
描述 |
| One Key Recovery DVD |
7B000-001083-RS |
1 |
|
| Round head machine screw |
44403-040061-RS |
4 |
M2*4 round head machine
screw |
| Pan head machine screw |
44003-030052-RS |
4 |
M4*6 pan head machine
screw |
| Power cord |
32702-000200-100-RS |
1 |
|
| Power adapter |
63040-010096-100-RS |
1 |
96W; Vin: 90V~264V AC;
Vout: 12VDC |
| Driver CD |
|
1 |
|
|
|
|
