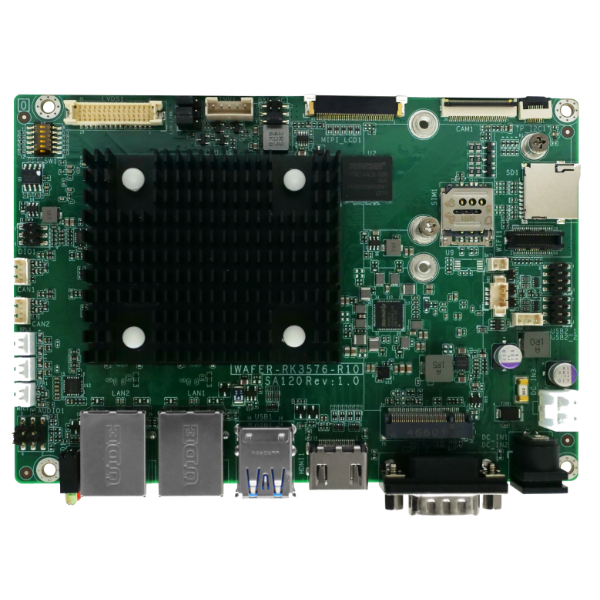

| WAFER-RK3576 | |
| CPU |
Rockchip RK3576 (Quad-code Cortex-A72@2.3GHz + Quad-code Cortex-A53@2.2GHz) |
| 内存 | On-board 8GB LPDDR5 |
| 内存上限 | 高达 16GB |
| 网络 | 2 x LAN: YT8531C 1GbE LAN |
| 显示输出 |
1 x HDMI™: 2.0 1 x LVDS 1 x MIPI DSI: 40Pin 0.5mm FPC |
| 音频 | HD Audio- 1 x Line out+Mic, 2x3 pin header 1 x 2pin Socket for Speaker (1x 3W: RL=4Ω) 1 x MIC (Wire to Board,WAFER 1 X2pin, DIP, 180°, P=1.25mm) |
| I/O接口 |
External RS-232: 2 x RS-232/485 By 1 x BD9 Port 2 x 外部 USB 3.2 Gen1x1: Type-A, 5Gb/s 5 x 内部 USB 2.0- 4 x USB 2.0 (2x4 pin, P=2.0) 1 x USB for touch 1 x DIO: 4-bit GPIO |
| 电源供电 | 12V DC IN, DC JACK/Terminal Block Colay Design |
| 电源功耗 | 12V@2.052A (Rockchip RK3576 CPU with LPDDR5 8GB memory) |
| 操作温度 | 0°C ~ 60°C |
| 存储温度 | -30°C ~ 70°C |
| Humidity | 5% ~95%, 无冷凝 |
| 尺寸 (LxWxH) (mm) | 146mm x 102mm |
| 净重 | GW:850g / NW:350g |
| M.2 |
1 x M.2 B key 3042/3052/2280 (PCIe Gen2 x1 & USB 2.0) 1 x On-board SIM card socket (hinge type) for M.2 B key 1 x B to B Connector (支持 iWB-RTL8822/iWB-BCM43752) |
| Camera | 1 x MIPI CSI 4Lanes x 1 (30pin 0.5mm FPC) |
| 尺寸类型 | 3.5 SBC |
