Mustang-MPCIE

具有两个 Intel® Movidius™ Myriad™ X VPU 计算加速卡,提供灵活的 AI 推理解决方案

End of Life

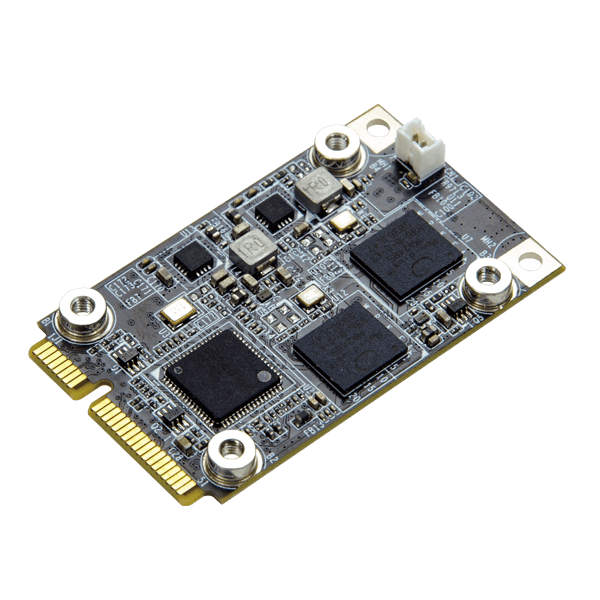

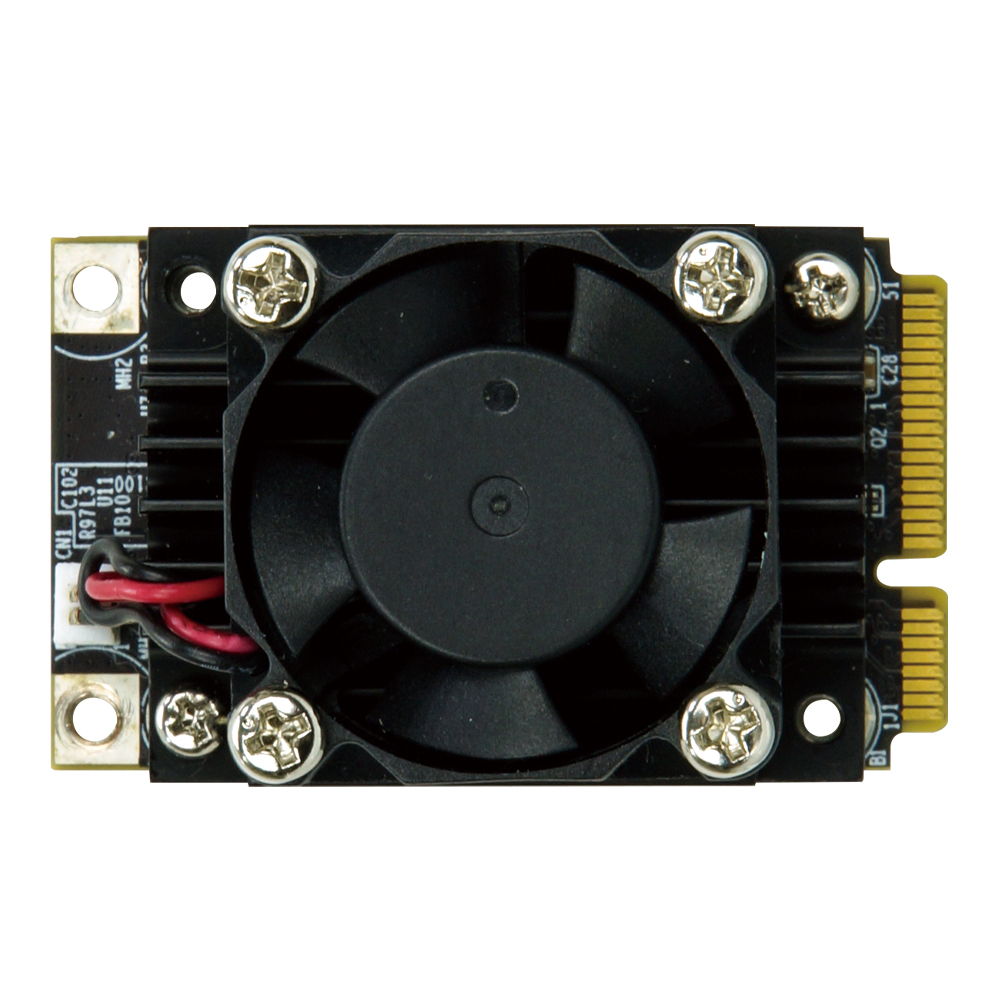

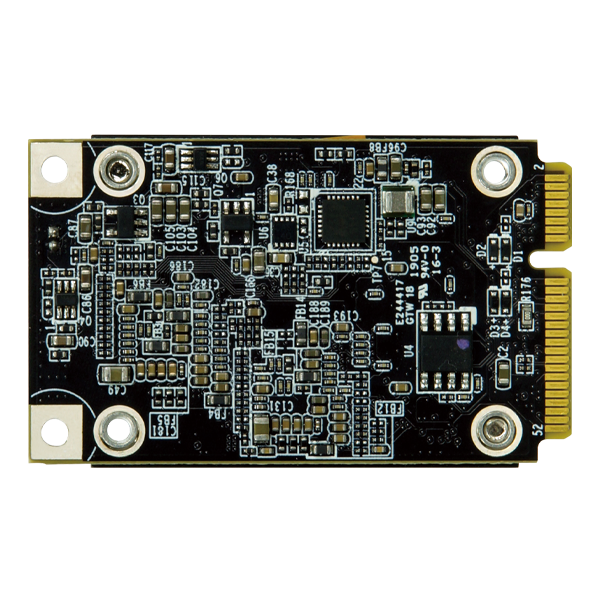

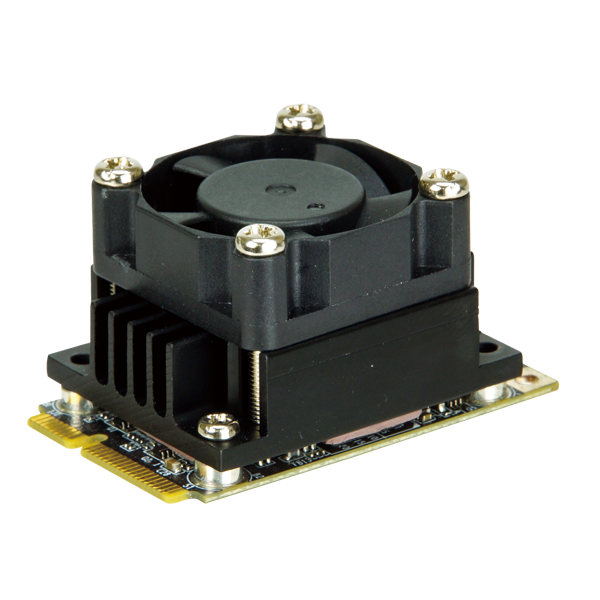

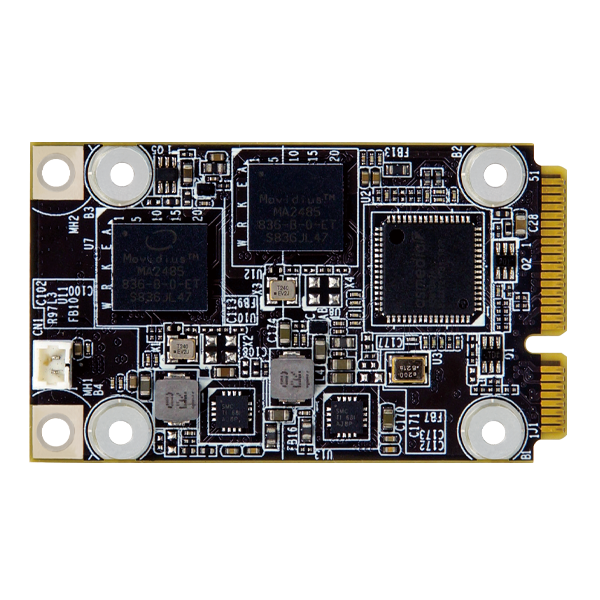

Mustang-MPCIE-MX2 VPU Card front
Mustang-MPCIE-MX2 VPU Card
Mustang-MPCIE-MX2 VPU Card
Mustang-MPCIE-MX2 VPU Card
Mustang-MPCIE-MX2 VPU Card
  • Mustang-MPCIE-MX2 VPU Card front
  • Mustang-MPCIE-MX2 VPU Card
  • Mustang-MPCIE-MX2 VPU Card
  • Mustang-MPCIE-MX2 VPU Card
  • Mustang-MPCIE-MX2 VPU Card

End of Life Notice

* Effective Date: 2022/05/13

» miniPCIe 外形尺寸 (30 x 50 mm)
» 2 x Intel® Movidius™ Myriad™ X VPU MA2485
» 能效 ,约 7.5W
» 操作温度 -20°C~60°C
» 由 Intel 的 OpenVINO™ 工具套件提供支持

Hardware Spec.

System
Chipset 2 x Intel® Movidius™ Myriad™ X MA2485 VPU
Cooling method / System Fan Active Heatsink
Physical Characteristics
Dimensions (LxWxH) (mm) 30 X 50
Falt-tolerance
LAN Bypass miniPCIe
Power
Power Consumption Approximate 7.5W
Environment
Operating Temperature -20°C~60°C
Humidity 5% ~ 90%

Ordering Information

Mustang-MPCIE-MX2-R10 Deep learning inference accelerating miniPCIe card with 2 x Intel® Movidius™ Myriad™ X MA2485 VPU, miniPCIe interface 30mmx50mm, RoHS
