PUZZLE-A001

1U 机架式网络设备,采用 AMD EPYC™ Embedded 3000 系列处理器,1 NMS 和 2 PCIe x4 插槽

End of Life

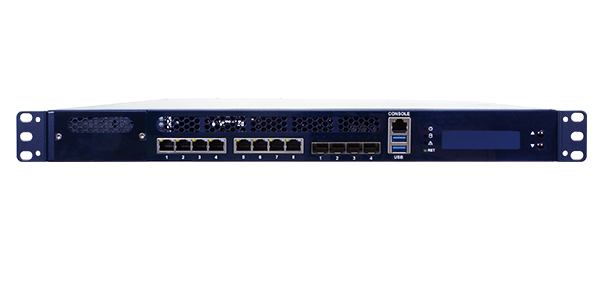

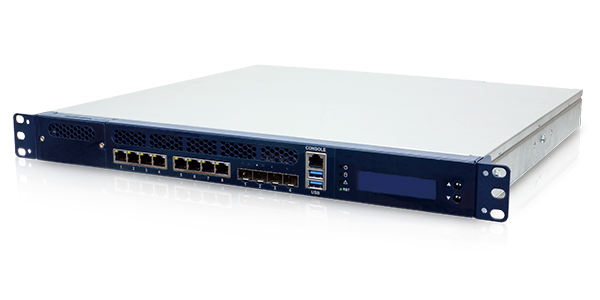

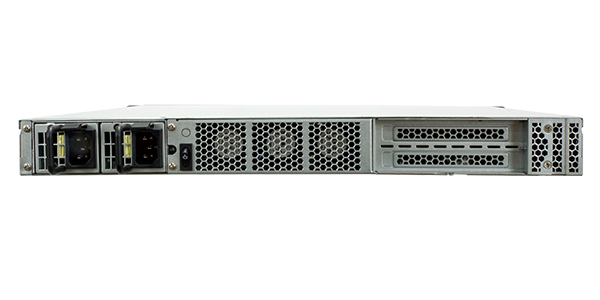

PUZZLE-A001 Network Appliance with AMD CPU
PUZZLE-A001 Network Appliance with AMD CPU
  • PUZZLE-A001 Network Appliance with AMD CPU
  • PUZZLE-A001 Network Appliance with AMD CPU

End of Life Notice

* Effective Date: 2021/08/17

• AMD EPYC™ 嵌入式 3000 系列处理器 高性能芯片上的 CPU 系统
• 通过 BCM 5720 支持 8 x GbE RJ-45, 4 x 10 GbE SFP+ 和 IEI 网络模块
• 支持开源软件, 例如 pfSense® 和 OPNsense®.
• 2 x 288-pin DIMM, 2 x DDR4 2666 MHz, UDIMM 高达 64GB / RDIMM 高达 128GB
• 1 x RJ-45 控制台, 2 x USB 3.1 Gen 1 (5Gb/s), LCM
• 2 x 2.5” SATA 3.0 硬盘槽, 1 x M.2 B-Key (SATA 3.0, USB 3.2 Gen 1 (5Gb/s)), 1 x PCIe 迷你卡 (PCIe 3.0, USB 2.0)
• 支持两个 PCIe x4 插槽
• 冗余 PSU

Hardware Spec.

System
CPU AMD EPYC™ Embedded 3201 processor, 8C/8T, up to 3.10 GHz
AMD EPYC™ Embedded 3151 processor, 4C/8T, up to 2.90 GHz
Chipset Integrated in CPU
Memory 4 x DDR4 2133/2666 MHz ECC or non-ECC UDIMM/ RDIMM
Memory Max. UDIMM Up to 64GB
RDIMM Up to 128GB
Cooling method / System Fan 4 x Cooling Fans with Smart Fan
Physical Characteristics
Rack Height 1U
Dimensions (LxWxH) (mm) 426x430x44.2
Net Weight 7 kg
Storage
Storage 2 x 2.5” SSD/HDD Bay support SATA 3.0 (6 Gbps)
1 x M.2(NGFF) 2260/3042 B key (SATA and USB 3.2 Gen 1 (5Gb/s)) Support SATA SSD and 4G LTE module
I/O Interface
Ethernet 4 x SFP+ 10 GbE SPF+ ports(Integrated in CPU)
8 x LAN GbE RJ45 LAN ports (Broadcom BCM5720)
I/O Interface 1 x External RS-232 Console
2 x External USB 3.2 Gen1x1 5Gb/s
1 x Internal USB 3.2 Gen1x1 5Gb/s
4 x Internal USB 2.0
Expansion 2 x PCIe x4 PCIe 3.0 x4 (FHHL) slot
1 x PCIe mini Card Slot PCIe 3.0, USB 2.0
Power
Power Supply 300W, 100V~240V (Redundant power)
Environment
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 75°C (-4°F ~ 167°F)
Humidity 5% ~ 90% non-condensing
Certifications
Safety & EMC CE / FCC
OS Support
OS Support Linux Ubuntu 18.04.04
CentOS 7/ Red Hat/Fedora EPEL

Ordering Information

PUZZLE-A001-SO3/16G/R-R10 1U Rackmount Network Appliance with AMD EPYC™ Embedded 3151 processor, 16GB DDR4, two 256GB SSD, four 10 GbE SFP+, eight 1GbE, one PulM, two PCIe expansion, Redundant Power, RoHS
PUZZLE-A001-SO2/16G/R-R10 1U Rackmount Network Appliance with AMD EPYC™ Embedded 3201 processor, 16GB DDR4, two 256GB SSD, four 10 GbE SFP+, eight 1GbE, one PulM, two PCIe expansion, Redundant Power, RoHS

Package Contents

Package Content
  • .2 x Power cord

  • .2 x Rack mounting ears

  • .6 x Screws for rack mounting ears

  • .USB to console cable (Option)

  • .RS-232 to console cable (Option)

  • .Slide rail (Option)
