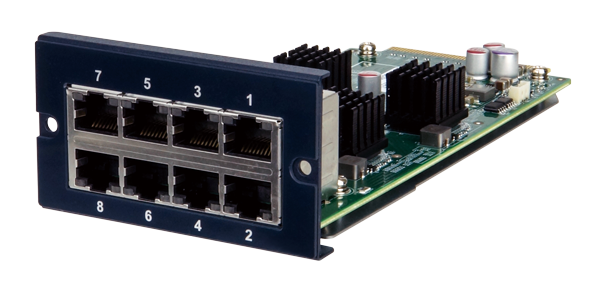

PulM-1G8T-BCM5720

Broadcom BCM5720 based Network Interface Card with 8 x RJ-45 by 4 PCIe 2.0 x 2 Interface

• 4 x Broadcom BCM5720
• 8 ports RJ-45 connector
• 4 PCIe 2.0 x2
• RoHS compliant

Hardware Spec.

Physical Characteristics
Dimensions (LxWxH) (mm) 165.50 (L) x 77.8 (W) x 44.2 (H)
I/O Interface
Ethernet 8 x LAN (RJ-45)
Environment
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 75°C (-4°F ~ 167°F)
Humidity 5% ~ 90% RH, Non-condensing
Certifications
Safety & EMC RoHS
Card Slot Interface
PCIe 4 PCIe 2.0 x2
Card Features
Speed 1 GbE
Controller Chip Broadcom BCM5720

Ordering Information

PulM-1G8T-BCM5720-R10 Broadcom BCM5720 based Network Interface Card with 8 x RJ-45 by 4 PCIe 2.0 x 2 Interface.

Package Contents

Package Content
  • 1 x PulM-1G8T-BMC5720 module

  • 1 x L-shaped T10 Plum Wrench

  • 1 x QIG
