PUZZLE-IN001

1U Rackmount Network Appliance with Intel® Xeon® E, 8th Generation Intel® Core™/Pentium®/Celeron® Processor, up to 2 NMS and 2 PCIe slots

PUZZLE-IN001 Network Appliance with Intel CPU
PUZZLE-IN001 Network Appliance with Intel CPU
PUZZLE-IN001 Network Appliance with Intel CPU
  • PUZZLE-IN001 Network Appliance with Intel CPU
  • PUZZLE-IN001 Network Appliance with Intel CPU
  • PUZZLE-IN001 Network Appliance with Intel CPU
» Intel® Xeon® E, 8th Generation Intel® Core™/Pentium®/Celeron® Processor
» Support 8 x GbE RJ45 via Intel® I211, and two PulM module slots
» 2 x 288-pin Long DIMM, DDR4 2400MHz ECC & non ECC, up to 32GB
» 1 x RJ45 Console, 2 x USB 3.2 Gen1, LCM
» 2 x 2.5” SATA drive bay, 1 x M.2 B Key, 1 x PCIe mini
» Support open source software, such as pfSense® and OPNsense®.
» Support PCIe x4 and PCIe x8 slot
» Redundant PSUs
puzzle network appliance banner

Overview

IEI PUZZLE series is the next generation product of network appliance which includes a broad portfolio of x86- based and ARM-based network platform built with the latest generation Intel, AMD, Marvell, NXP or Cavium processors, and Aquantia, Intel, Broadcom, Mellanox network interface controllers. These products are built for proprietary network appliance and uCPE (Universal Customer Premise Equipment).

puzzle network appliance uCPE

PUZZLE Series Ecosystem

PUZZLE is about the uCPE consists of software virtual network functions (VNFs) running on a standard operating system hosted on an open server. An ideal uCPE deployment supports a multi-vendor multi-component construction and enables rapid development as well as open multi-vendor systems.

network ecosystem



Smart NIC Option

Smart NIC is not only increases the performance of system but also provides special functions like virtualization technology and packet processing. It is ideal for users want to, for instance, build up a network server with virtual machine and provide storage function.

PulM-1G4T-I211

PulM-1G4T-I211
> NIC Brand: Intel®
> Form Factor Interface: Quad ports 1GbE RJ-45 2 pairs bypass
> Description: 4 x PCIe 3.0 x2

PulM-10G4SF-XL710

PulM-10G4SF-XL710
> NIC Brand: Intel®
> Form Factor Interface: Quad ports 10GbE SFP+
> PCIe 3.0 x8

PulM-25G2SF-MLX NIC

PulM-25G2SF-MLX
> NIC Brand: Mellanox®
> 2 ports 25 GbE SFP28 connector
> Description: PCIe 3.0 x8

PulM-10G4SF-MLX network interface controller

PulM-10G4SF-MLX
> NIC Brand: Mellanox®
> 4 ports 10 GbE SFP+ connector
> 2 PCIe 3.0 x4

PulM-10G4T-AQC107 NIC

PulM-10G4T-AQC107
> NIC Brand: Aquantia®
> 4 ports 10G BASE-T connector
> 4 x PCIe 2.0 x2

PulM-1G8T-BCM5720 NIC

PulM-1G8T-BCM5720
> NIC Brand: Broadcom®
> 8 ports RJ-45 connector
> 4 x PCIe 2.0 x2

PulM-10G4SF-XL710-BP NIC

PulM-10G4SF-XL710-BP
> NIC Brand: Intel®
> Quad ports 10GbE SFP+
> PCIe 3.0 x8

PulM-1G4T-I211-BP NIC

PulM-1G4T-I211-BP
> Intel®
> Quad ports 1GbE RJ-45
> 4 x PCIe 3.0 x2

Applications

Next Generation Firewall (NGFW)

Next Generation Firewall (NGFW)

Wireless Gateway

Wireless Gateway

WAN Optimization

WAN Optimization

Next Generation Firewall (NGFW)

Unified Threat Management (UTM)

Wireless Gateway

Intrusion Detection System (IDS)

WAN Optimization

Application Delivery Controller

AI Ready Solution

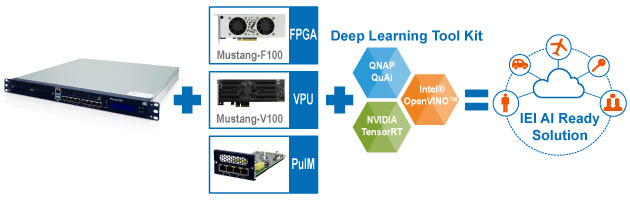

PUZZLE series are AI hardware ready system ideal for deep learning inference computing to help you get faster, deeper insights into your customers and your business.

AI ready network appliance

Specifications

Hardware Spec.

Certifications
Safety & EMC CE / FCC / RoHS
Environment
Humidity 5% ~ 90% non-condensing
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 75°C (-4°F ~ 167°F)
I/O Interface
Ethernet 8 x LAN: GbE RJ45 (Inteli211-AT)
Expansion 1 x PCIe mini Card Slot: PCIe 3.0 & SATA 3.0, USB 2.0
1 x PCIe x4
1 x PCIe x8
I/O Interface 1 x Console port(s): RJ45
2 x External USB 3.2 Gen1x1
4 x Internal USB 2.0: Pin header
OS Support
OS Support Linux Ubuntu 16 & above
CentOS 7/ Red Hat/Fedora EPEL
Microsoft Windows 10
Other Features
TPM 1 x TPM 2.0 Pin header
Physical Characteristics
Dimensions (LxWxH) (mm) 426x430x44.2
Net Weight 7 kg
Rack Height 1U
Power
Power Supply 300W, 100V~240V (Redundant power)
Storage
Storage 2 x 2.5” SSD/HDD Bay: support SATA 3.0 (6 Gbps)
1 x M.2(NGFF)B key 2260/2280
System
Chipset Inte® C246
Cooling method / System Fan 4 x Cooling Fans with Smart Fan
CPU Intel® Gen8 Xeon® E-2136 processor
Intel® Gen8 Core™ i3-8100T processor
Memory 2 x DDR4 2400MHz ECC/Non-ECC UDIMM
Memory Max. up to 32 GB

Ordering Information

PUZZLE-IN001-XE/R-R20 1U Rackmount Network Appliance with Intel® Gen8 Xeon® E-2136 processor, two DDR4 slots, and eight 1GbE , two PulM slots , two PCIe expansion, Redundant Power, RoHS
PUZZLE-IN001-R-R20 1U Rackmount Network Appliance support Intel® Gen8 Xeon®E3, Core™ i3, Pentium® or Celeron® processor, two DDR4 slots, and eight 1GbE , two PulM slots with new screw hole design, two PCIe expansion, Redundant Power, RoHS
PUZZLE-IN001-i3T/R-R20 1U Rackmount Network Appliance with Intel® Gen8 Core™ i3-8100T processor, two DDR4 slots, and eight 1GbE , two PulM slots , two PCIe expansion, Redundant

Package Contents

Package Content

  • ．2 x Power cord

  • ．2 x Rack mounting ears

  • ．6 x Screws for rack mounting ears

  • ．USB to console cable (Option)

  • ．RS-232 to console cable (Option)

  • ．Slide rail (Option)

  • ．CPU Heatsink (TDP:80W) (Option)

  • ．CPU Heatsink (TDP:35W) (Option)

  • ．HDMI™ cable (Option)

Download Specs.
