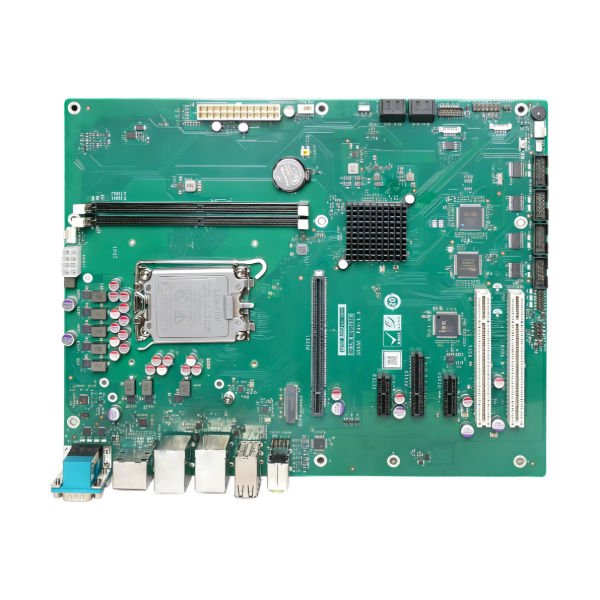

| IMBA-BTL-H610 | |
| CPU | LGA1700 socket supports 12th/13th/14th generation Alder Lake-S/Raptor Lake-S/Bartlett Lake Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 65W TDP CPU) |
| 芯片组 | Intel® H610/H610E |
| 内存 | Two 288-pin 5600 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs supported up to 96GB |
| 网络 | 2 x LAN- LAN1: Intel® I219 LM 控制器 LAN2: Intel® I226V 2.5GbE 控制器 |
| 显示输出 |
1 x HDMI™: 1.4 (高达 4K@60Hz) 1 x Display Port: 1.4 (高达 4K@60Hz) 1 x iDPM: 3040 slot (only for IEI eDP/LVDS/VGA module) |
| 音频 | 1 x HD Audio: Realtek ALC888S HD codec 2 x Audio Jack (Line-out, Mic-in) on rear IO 1 x Analog audio (2x5 pin) |
| I/O接口 |
2 x 外部RS-232/422/485: RS-485 支持 AFC 4 x 内部RS-232: 2x5 pin, P=2.54 4 x 外部 USB 2.0: Type-A 2 x 外部 USB 3.2 Gen1x1: Type-A, 5Gb/s 2 x 内部 USB 2.0: 2x4 pin, P=2.00 1 x DIO: 12位数字 I/O (2x7 pin) 2 x 外部 USB 3.2 Gen2x1: Type-A, 10Gb/s |
| 存储 | 4 x SATA: 6Gb/s |
| 扩展 |
1 x PCIe x16: Gen4 x 16 1 x PCIe x4: Gen3 x 4 open-end 2 x PCIe x1:Gen3 x 1 2 x PCI Slot |
| 电源供电 |
支持ATX/AT power 支持 AT/ATX mode ErP/EuP Compliant |
| 电源功耗 | TBD |
| 操作温度 | -10°C ~ 60°C |
| 存储温度 | -30°C ~ 70°C |
| Humidity | 5% ~95%, 无冷凝 |
| 尺寸 (LxWxH) (mm) | 244mm x 305mm |
| 净重 | GW: 1200g / NW: 700g |
| 散热方案/系统风扇 |
1 x CPU fan connector (1x4 pin) 1 x System fan connector (1x4 pin) |
| 尺寸类型 | ATX |
