IEI Releases New Network Module Card - PulM-M2-2S

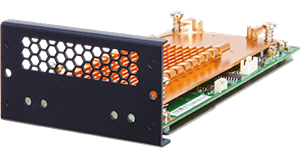

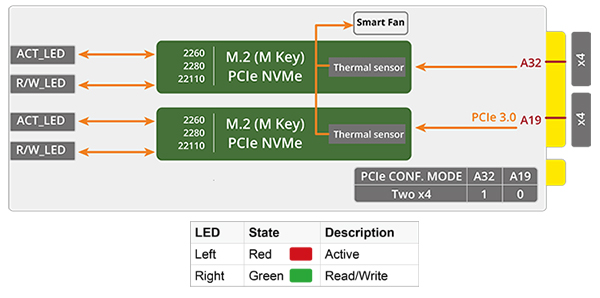

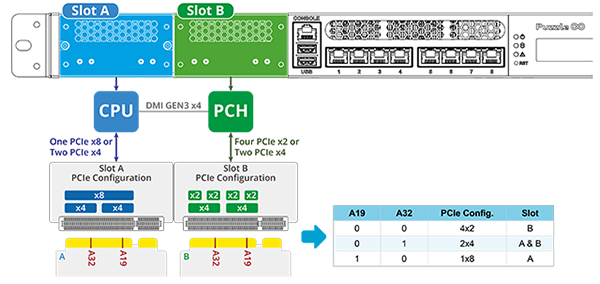

Features Specifications Packing List Ordering Information Dimensions Block Diagram Hardware Installation Applications Features PulM-M2-2S ✔ Supports two M.2 2280 PCIe NVMe (3.0 x4) SSDs ✔ M.2 SSD temperature is monitored in real time by sensor IC ✔ PCIe 3.0 x8 ✔ LED indicator shows the M.2 status ✔ RoHS compliant Specifications   Model Name PulM-M2-2S Interface IEI Networking Module - PulM Switch IC N/A M.2 2 x M key 2260/2280/22110 (PCIe/NVMe) PCIe N/A Operating Temp 0 ~ 40ºC Humidity 5% ~ 90% RH, Non-condensing Dimensions (mm) 165.50 (L) x 77.8 (W) x 44.2 (H) Compliance RoHS Packing List 1 x PulM-M2-2S module 2 x Thermal Pad kit 1 x L-shaped T10 Plum Wrench 4 x M.2 SSD Screw 2 x Torx Screws 1 x QIG Ordering Information Part No. Description PulM-M2-2S-R10 M.2 PCIe SSD expansion card supports two M.2 2280 PCIe NVMe (3.0 x4) SSDs; two PCIe 3.0 x4 host interface Dimensions Block Diagram Hardware Installation Install the PulM-M2-2S module into the slot of the PUZZLE series. The Slot A supports 8 lanes from CPU (1 PCIe x8 or 2 PCIe x4); the Slot B supports 8 lanes from PCH (2 PCIe x4 or 4 PCIe x2). The PulM-M2-2S is can installed into the slot A & slot B. Applications Case Study Video Police Station Network Firewall PUZZLE-IN003B introduction Firewall Solution PUZZLE IN001 & IN002 Introduction PUZZLE-A001 introduction PUZZLE M801 Introduction Network Appliance & Network NIC Card Solutions IEI Integration Corp. Tel:+886-2-8691-6798 +886-2-2690-2098 Fax:+886-2-6616-0028 sales@ieiworld.com IEI Technology USA Tel:+1-909-595-2819 Fax:+1-909-595-2816 sales@usa.ieiworld.com IEI Integration China Tel:+86-21-3116-7799 Fax:+86-21-3462-7797 sales@ieiworld.com.cn IEI Integration Corp. 東京支店 Tel:+81-3-5901-9735 Fax:+81-3-5901-9736 japansales@ieiworld.com Copyright©2020 IEI Integration Corp. All Rights Reserved. Design and specifications are subject to change without prior notice. Keep in touch with us!
