PUZZLE-200

Desktop Network Appliance, Marvell CN10208 2.1GHz, 6 x 1 GbE RJ45, 2 x 2.5 GbE RJ45, 2 x 10GbE SFP+, DDR5 8GB, eMMC 32GB, DIN mount

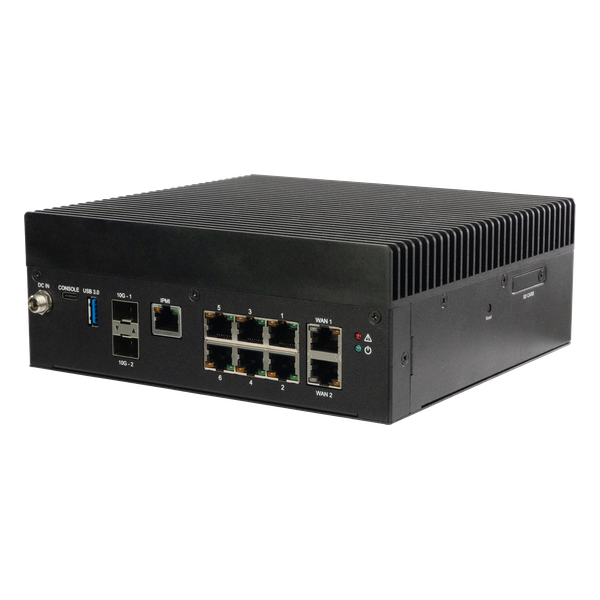

left

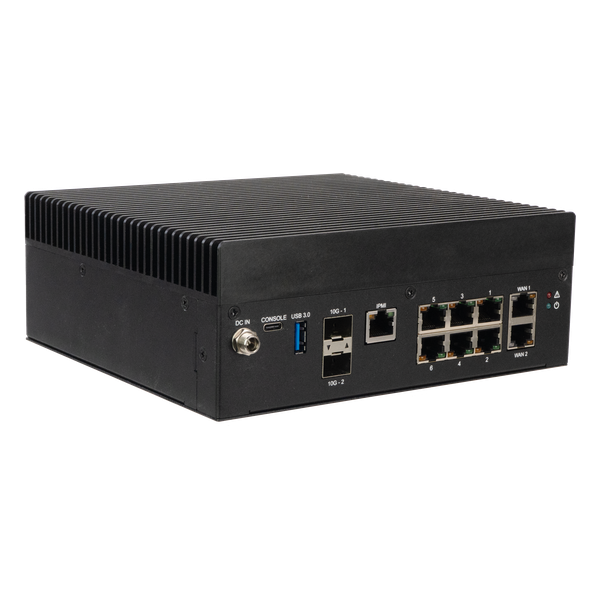

right

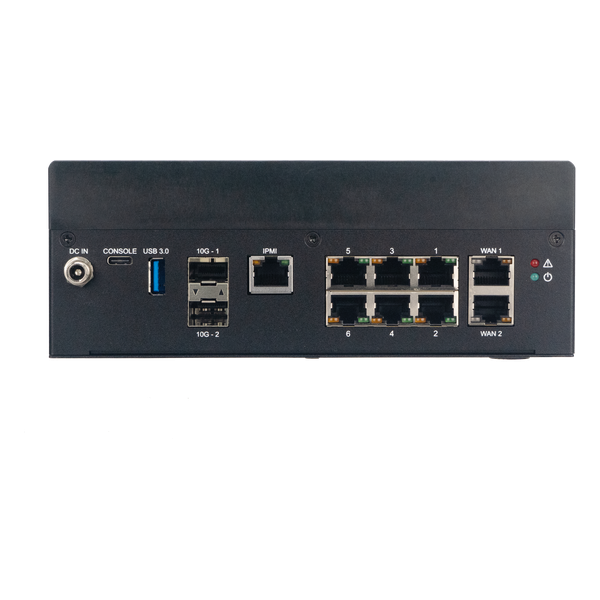

front
  • left
  • right
  • front
»   Marvell Octeon CN10208
»   Fanless design
»   1 x DDR5 SO-DIMM
»   6 x 1GbE RJ45, 2 x 2.5GbE RJ45, 2 x 10GbE SFP+
»     Support DIN mount

Specifications

Hardware Spec.

Form Factor
Form Factor Desktop, DIN mount
System
CPU Marvell CN10208 8 cores 2.1GHz
Memory DDR5 8GB SO-DIMM
Memory Max. Up to 32 GB
Cooling method / System Fan Fanless
Physical Characteristics
Dimensions (LxWxH) (mm) 190 x 150 x 70
Net Weight 1.7 Kgs
Storage
Storage 1 x eMMC : 32GB
1 x M.2(NGFF) : M.2 2280 M Key (Support PCIe Gen4 x4)
1 x SD/MicroSD card : Micro SD slot
I/O Interface
Ethernet 8 x LAN -
6 x 1GbE RJ45 LAN ports
2 x 2.5GbE RJ45 WAN ports
2 x SFP+ : 10GbE SFP+ WAN ports
I/O Interface 1 x Console port(s) : USB type C
1 x USB 3.0 : Type A



Other Features
IPMI 1 x M.2 B Key Socket support IEI iRIS3 IPMI module,
1 x RJ45 for IPMI port
TPM 1 x TPM 2.0 on board
Power
Power Consumption 38.4W
Power Supply 60W AC-DC power adaptor
Environment
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -40°C ~ 85°C
Humidity 5% ~ 90% non-condensing
Certifications
Safety & EMC By customer request
OS Compatible
OS Compatible Ubuntu, Linux based OS

Ordering Information

PUZZLE-200-CN102-8G-R10 Desktop Network Appliance, Marvell CN10208 2.1GHz, 6x 1 GbE RJ45, 2x 2.5 GbE RJ45, 2x 10GbE SFP+, DDR5 8GB, eMMC 32GB, DIN mount
PUZZLE-200-CN102-8G-iRIS-R10 Desktop Network Appliance, Marvell CN10208 2.1GHz, 6x 1 GbE RJ45, 2x 2.5 GbE RJ45, 2x 10GbE SFP+, DDR5 8GB, eMMC 32GB, iRIS3, DIN mount

Package Contents

  • 1 x Power adapter
  • 1 x Power cord
  • 1 x DIN mount kit
