RHEA-E1260A

超级电容不间断电源

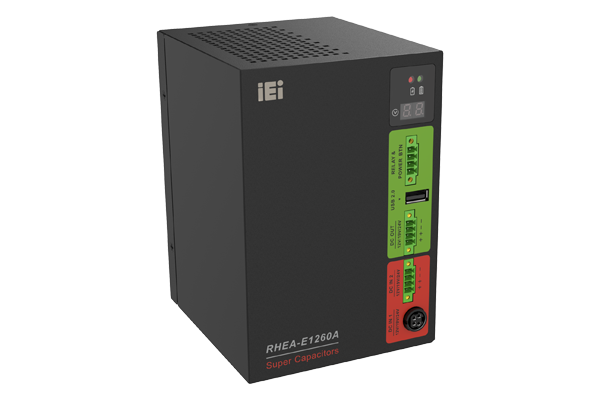

RHEA-E1260A-left

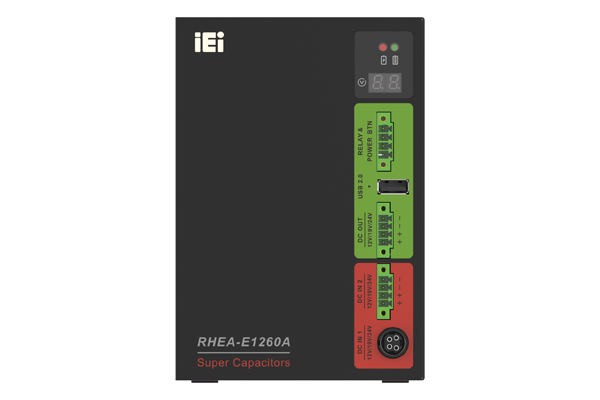

RHEA-E1260A-front

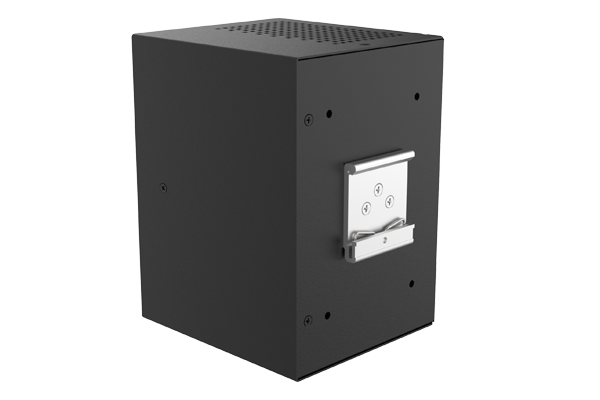

RHEA-E1260A-back
  • RHEA-E1260A-left
  • RHEA-E1260A-front
  • RHEA-E1260A-back
» 12 个 3.0V/600F 超级电容
» 12/19/24V DC 自适应输入输出
» 最大 150W 负载 2.6V@30℃ 可持续 100S 时间
» 标准 60W 负载 2.6V@30℃ 可持续 280S 时间
» 50 万次充放电周期
» -40 至 60 度宽温度环境
» 透过软体/硬体提供断电关机服务
» 10 年超长使用寿命
» 直观的电源管理软件, 更易于管理

Hardware Spec.

Environment
工作温度 -40°C ~ 60°C
存储温度 -40°C ~ 70°C
Input
Voltage 12V or 19V or 24V ±10%
Output
Voltage 12V or 19V or 24V ±10%
General
Watt 150W
Dimensions 160.2 x 125 x 110
Output Connector 1 x 4 Pin DC JACK
1 x 4 Pin Terminal block power input
1 x 4 Pin Terminal block power output
1 x 4 Pin Terminal block (relay & power button)
1 x USB 2.0 Type-A
Weight
Weight 2.37 / 2.6 kg

Ordering Information

RHEA-E1260A-R10 150W DC/DC Supercapacitor backup system, 12/19/24V Input and Output, 12x 600F@3V Supercapacitor, External

Package Contents

Package Content
  • 1 x USB Cable (Type-A to Type-A 500mm, P/N: 32001-006105-200-RS)

  • 2 x terminal block (4pin, p=3.5mm,P/N:33502-000444-RS)

  • 1 x terminal block (4pin, p=3.81mm,P/N:33502-000317-RS)

  • 2 x Wall mount kit (P/N:41420-0592C2-00-HF)

  • 1 x DIN-Rail kit (P/N:42311-0054E4-00-HF)

  • 1 x Screw pack
