RHEA-I420A

超级电容备援板

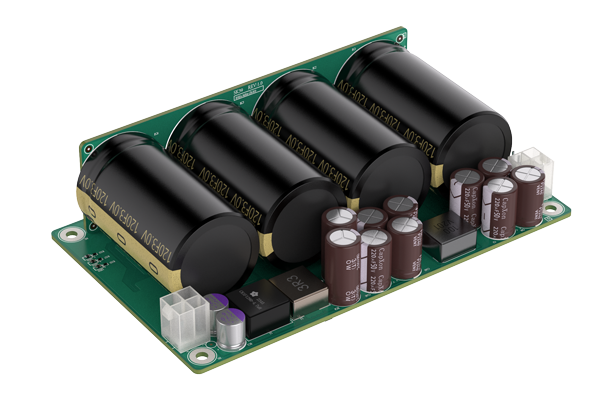

RHEA-I420A-left

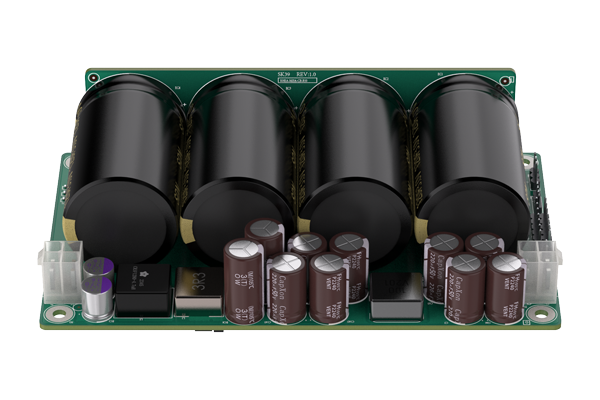

RHEA-I420A-front

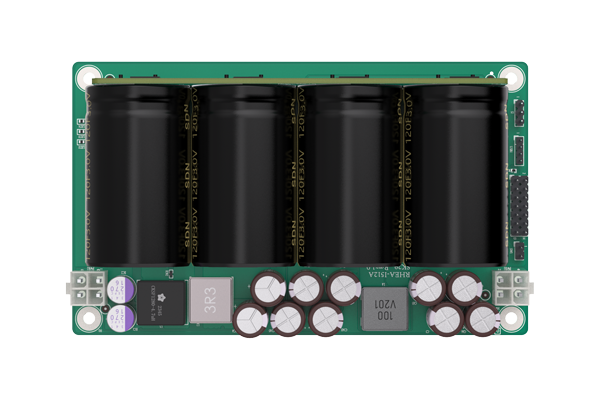

RHEA-I420A-up
  • RHEA-I420A-left
  • RHEA-I420A-front
  • RHEA-I420A-up
» 4 个 3.0V/200F 超级电容
» 12-28V 直流输入, 12V直流输出
» 最大 60W 负载 2.5V@30℃ 可持续 20S 时间
» 50 万次充放电周期
» -40 至 60 度宽温度环境
» 透过软体/硬体提供断电关机服务
» 10 年超长使用寿命
» 直观的电源管理软件, 更易于管理

Hardware Spec.

Environment
工作温度 -40°C ~ 60°C
存储温度 -40°C ~ 70°C
Input
Voltage 12-28V DC
Output
Voltage 12V DC
General
Watt 60W
Dimensions 81 x 135 x 33.6
Output Connector 1 x DC in (2x2 Pin)
1 x DC out (2x2 Pin)
1 x USB2.0 (1x4 Pin)
1 x Debug (1x3 Pin)
1 x FW flash (2x7 Pin)
1 x Power button (1x2 Pin)
Weight
Weight 0.25kg

Ordering Information

RHEA-I420A-R10 60W DC/DC Supercapacitor backup board, 12-28V Input,12V Output, 4x 200F@3V Supercapacitor, Internal
