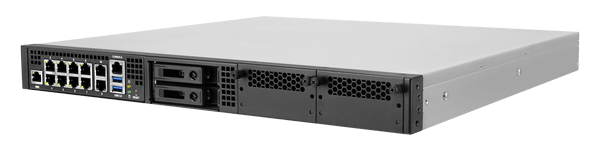

PUZZLE-5070
» 14th Gen Intel® Core processor (Arrow Lake S)
» 4 x DDR5 UDIMM Slots
» 10 x 1GbE RJ45 LAN ports
» 1 x internal M.2 2280 M key slot
» 2 x External 2.5” U.2 SSD Removable Trays
» 2 x IEI proprietary interface network slots
» 1 x BMC support
» 1 x RJ45 console port
» CRPS redundant PSU (Hot Swap, and field replaceable design)
Hardware Spec.
| 尺寸类型 | |
|---|---|
| 尺寸类型 | 1U |
| 系统 | |
|---|---|
| CPU | Intel Core Ultra 200S Series Processors (Code Name Arrow Lake S) |
| 芯片组 | Intel 800 Series |
| 内存 | DDR5 6400MHz UDIMM |
| 内存上限 | Up to 256 GB |
| 散热方案/系统风扇 | 4 x System fans |
| 物理特性 | |
|---|---|
| Rack Height | 1U |
| 尺寸 (LxWxH) (mm) | 436.2 x 454.3 x 44.2 |
| 净重 | 10 Kgs |
| 存储 | |
|---|---|
| 存储 | 2 x 2.5” SSD/HDD Bay : support PCIe Gen5 x4 |
| I/O 接口 | |
|---|---|
| 网络 | 10 x LAN : 1GbE RJ45 LAN ports |
| I/O接口 | 1 x Console port(s) : RJ45 Type |
| 2 x USB 3.0 : Type A | |
| 扩展 | 2 x PCIe x8 : for iEi proprietary networking module (PulM module) slots (support PCIe Gen5) |
| 1 x M.2(NGFF) : 2280 M Key (support PCIe Gen4 x4) | |
| Other Features | |
|---|---|
| IPMI | 1 x M.2 B Key Socket support IEI iRIS2 IPMI module 1 x 1 GbE RJ45 for IPMI port |
| TPM | 1 x TPM 2.0 pin header |
| 电源 | |
|---|---|
| 电源供电 | 300W CRPS Redundant Power |
| 环境 | |
|---|---|
| 操作温度 | 0°C ~ 40°C (32°F ~ 104°F) |
| 存储温度 | -10°C ~ 50°C |
| Humidity | 5% ~ 90% non-condensing |
| 认证 | |
|---|---|
| Safety & EMC | By customer request |
| OS Compatible | |
|---|---|
| OS Compatible | Ubuntu, Linux based OS |
