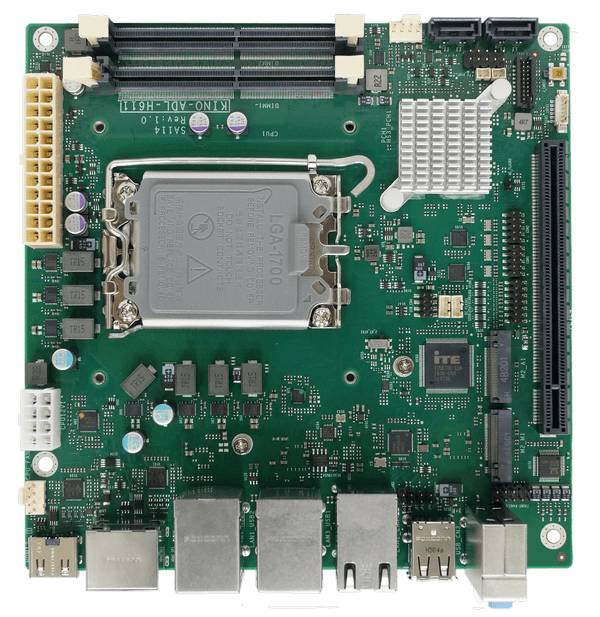

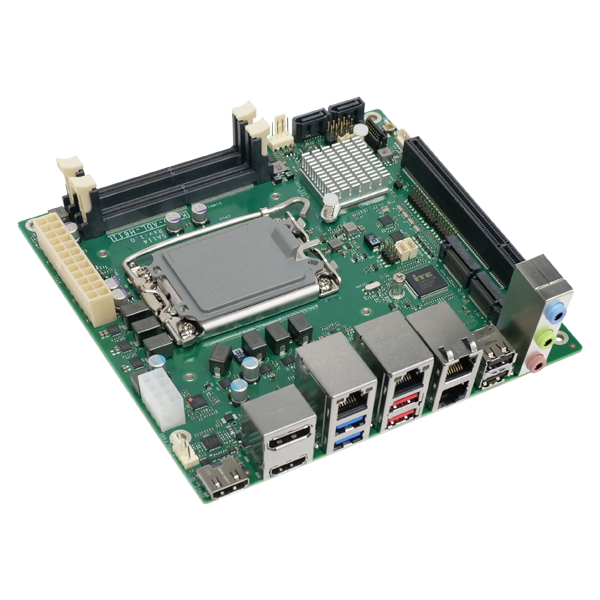

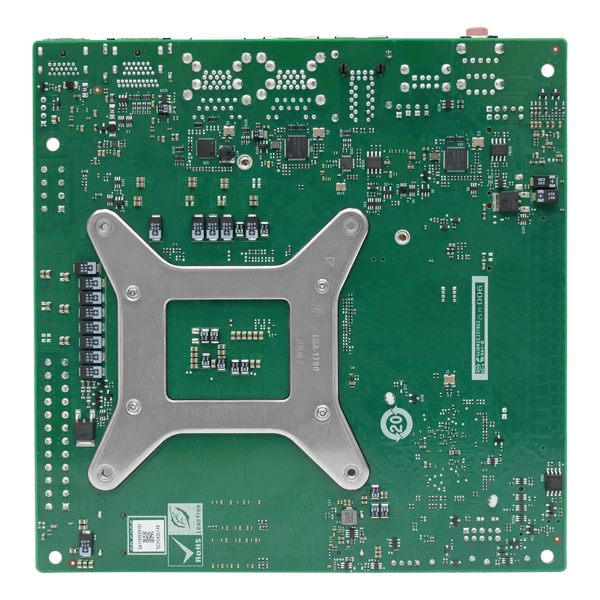

1. mini-ITX SBC 支持 LGA1700 Intel® 12th/13th/14th Core™ i9/i7/i5/i3, Pentium® 和 Celeron® 处理器
2. 两个 260-pin 3200 MHz Dual-Channel DDR4 SO-DIMM
3. 三个独立显示通过两个 HDMI 和 DP
4. 支持四个 Intel® I226V 2.5GbE 和 I219-V 1GbE 控制器
5. 支持 PCIe Gen4 x16, M.2 M key 和 M.2 A key 扩展
Hardware Spec.
| 尺寸类型 | |
|---|---|
| 尺寸类型 | Mini-ITX SBC |
| 系统 | |
| CPU | LGA1700 socket supports 12th/13th/14th generation Alder Lake-S/Raptor Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 65W TDP CPU) |
| 内存 | Two 260-pin 3200 MHz Dual-Channel DDR4 SO-DIMM |
| 内存上限 | 高达 64 GB |
| 散热方案/系统风扇 |
1 x CPU fan connector (1x4 pin) 1 x System fan connector (1x4 pin) |
| 物理特性 | |
| 尺寸 (LxWxH) (mm) | 170mm x 170mm |
| 净重 | GW: 900g / NW: 400g |
| 存储 | |
| 存储 | 2 x SATA : 6Gb/s |

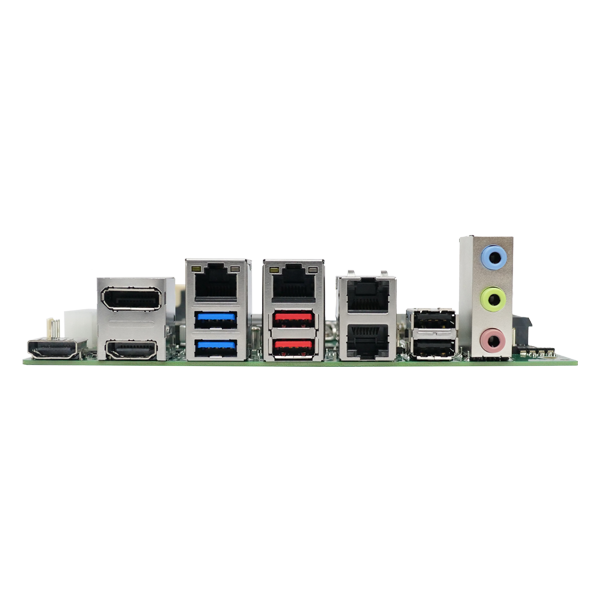

| I/O 接口 | |
| 显示输出 | 2 x HDMI™ : HDMI 2.0b (up to 4K @60Hz) |
| 1 x Display Port : DP 1.4a (up to 4K @60Hz) | |
| 网络 |
4 x LAN - LAN1: Intel® I226-V 2.5GbE controller LAN2: Intel® I226-V 2.5GbE controller LAN3: Intel® I226-V 2.5GbE controller LAN4: Intel® I219-V 1GbE controller |
| 音频 |
HD Audio - Realtek ALC888S HD codec 3 x Audio Jack (Line-in, Line-out, Mic-in) on rear IO 1 x Analog audio (2x5 pin) |
| I/O接口 | 2 x 内部RS-232/422/485 : 2x5 pin, P=2.0 |
| 2 x 外部 USB 2.0 : Type-A | |
| 2 x 外部 USB 3.2 Gen1x1 : Type-A, 5Gb/s | |
| 2 x 内部 USB 2.0 : 2x4 pin, P=2.0 | |
| 1 x DIO : 12-bit digital I/O (2x7 pin) | |
| 2 x 外部 USB 3.2 Gen2x1 : Type-A, 10Gb/s | |
| 1 x I²C : 1x4 pin | |
| 扩展 | 1 x PCIe x16 : with x16 Signal Gen4 |
| Other Features | |
| TPM | 2x10 pin |
| 电源 | |
| 电源功耗 |
3.3V@2.52A, 5V@4.09A, 12V@5.75A, 5VSB@0.2A (Intel® Core™ i9-12900 CPU with 32 GB 3200 MHz DDR4 memory, EuP mode disabled) |
| 电源供电 |
Support AT/ATX mode ErP/EuP Compliant |
| 环境 | |
| 操作温度 | -10 ~ 60℃ |
| 存储温度 | -30°C ~ 70°C |
| Humidity | 5% ~ 95%, 无冷凝 |
| Card Slot Interface | |
| M.2 |
1 x M.2 M key (2280, PCIe Gen3 X 4) 1 x M.2 A key(2230, PCIe Gen3 x1 & USB 2.0) for wifi/BT |
Ordering Information
| KINO-ADL-H611-R10 | LGA1700 socket supports 12th/13th/14th generation Alder Lake-S/Raptor Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 65W TDP CPU) |
|---|
Package Contents
| Package Content |
|
|---|
