SHIELD-215-U

21.5寸不锈钢全防水平板电脑，搭载英特尔® Meteor Lake 处理器

» 英特尔® 酷睿™ Meteor Lake Ultra 5/7 处理器
» 10~28V 宽压输入
» 304 不锈钢外壳
» 预安装 16GB 高性能 DDR5 内存，最高可扩展至 96GB
» 可选配高速传输光纤模块
» 全防水接口

Specifications

Hardware Spec.

System
CPU Intel® Meteor Lake Ultra 5 processor 125U
Intel® Meteor Lake Ultra 7 processor 155U
内存 2 个 SO-DIMM 插槽，支持 DDR5-4800，高可扩展至 96GB (预安装 16GB)
Memory Max. 96GB
存储 1 x M-Key 2280 (PCIe Gen4 x4) for M.2 SSD
1 x 128GB eMMC (可选配)
I/O Interface
网络 2 x 2.5GbE LAN via Intel I226-IT
扩展 1 x M.2 M-Key 2242/2280 (PCIe Gen4 x 4)
1 x M.2 B-Key 3052/3080 (PCIe Gen3 x1 + USB 3.2 x1)
1 x NANO-SIM
1 x M.2 A-key 2230 (PCIe Gen3 x1 + USB 2.0 x1)
Power
电源输入 DC 10~28V
Environment
工作温度 -10°C ~ 55°C @50%RH
安规&电磁 CE/FCC
相对湿度 10% to 90%RH@40°C, 无凝结
存储温度 -40°C ~ 70°C
IP Level Fully IP69K
Physical Characteristics
安装方式 VESA Mount 100 x 100 / Pole Mount / YOKE Mount
Construction 304 不锈钢
LCD
LCD 尺寸 21.5”
分辨率 1920 x 1080 (16:9)
亮度 500 cd/m²
对比度 1000:1
LCD 色彩 16.7M
像素间距 (mm) 0.248 (H) x 0.248 (V)
可视角度 (H-V) 178°/178°
背光 MTBF 50000小时



Touch
触摸屏 多点投射式电容屏
（具备抗紫外线 / 防眩光涂层，支持带手套操作）
触控IC ILI2521
Other Features
Camera 1 x 摄像头 (广视角)

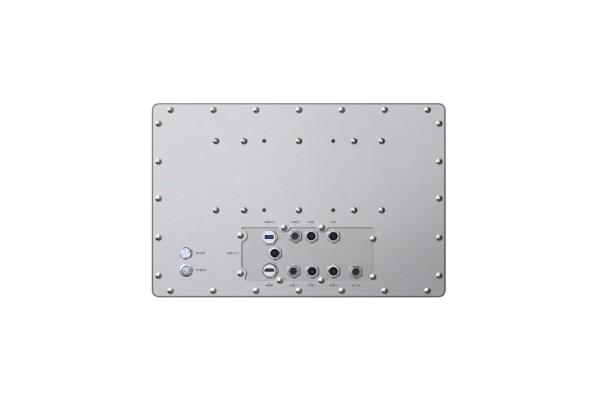

I/O Interface
I/O 接口 1 x CAN-bus (带2.0 KV 隔离)
1 x Power Switch
1 x RS-232 (带2.0 KV 隔离)
1 x RS-232/422/485 (带2.0 KV 隔离)
1 x USB 2.0
1 x USB 3.2 Gen1x1
1 x HDMI™ (1.4b)
2 x LAN (2.5GbE)
1 x 直流电源输入插孔
1 x GPIO (带1.6 KV 隔离)

Ordering Information

SHIELD-215-U7AD-R10 21.5" 500cd/m² 1920x1080 Panel PC with Intel® Core™ Ultra 7 processor 155U , Preinstalled with 16GB DDR5, PCAP touch, 10~28V DC, 304 Stainless Steel Chassis, Full Body IP66 Rated With Water-Proof Connectors , R10
SHIELD-215-U5AD-R10 21.5" 500cd/m² 1920x1080 Panel PC with Intel® Core™ Ultra 5 processor 125U , Preinstalled with 16GB DDR5, PCAP touch, 10~28V DC, 304 Stainless Steel Chassis, Full Body IP66 Rated With Water-Proof Connectors , R10

Package Contents

  • 1 x SHIELD-215-U
  • 1 x 电源线
  • 1 x USB2.0 线
  • 1 x 网线
  • 1 x 使用指南
