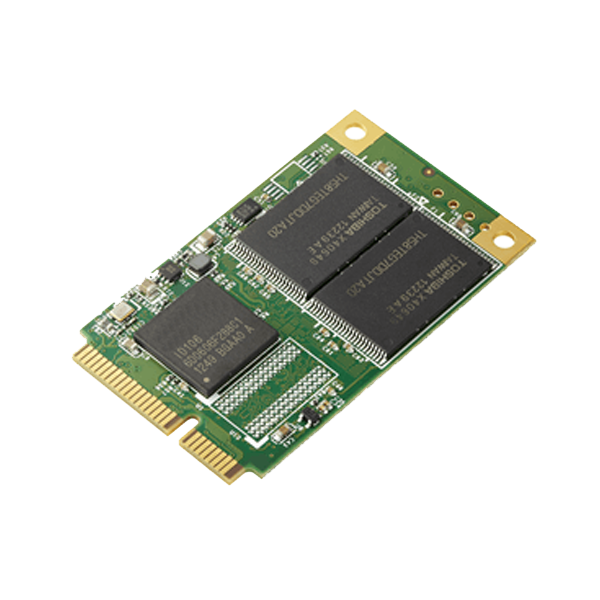

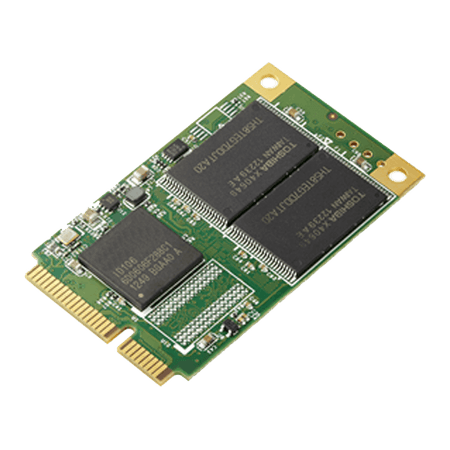

IPE-5320AM/AWM

Excellent C/P ratio with SATA III performance MLC

End of Life

End of Life Notice

* Effective Date: 2024/09/03

Excellent C/P ratio with SATA III performance MLC

Specifications

Hardware Spec.

ATA Security
ATA Security Yes
Capacity (GB)
Capacity (GB) MLC
Dimensions
Dimensions 29.8 x 50.8 x 4.4
Flash Type
Flash Type 8GB~256GB
Interface
Interface SATA 6Gb/s
Key Features
Key Features 1. Excellent data transfer
speed and IOPS
2. Budget- friendly MLC-based
solution
Max. Power Consumpation
ConsumpationMax. Power Consumpation 1.3W (3.3V x 390 mA)
P/N
STD(0°C~+70°C) IPE-5320AM-8GB-R10
IPE-5320AM-16GB-R10
IPE-5320AM-32GB-R10
IPE-5320AM-64GB-R10
IPE-5320AM-128GB-R10
IPE-5320AM-256GB-R10
WT(-40°C~+85°C) IPE-5320AWM-8GB-R10
IPE-5320AWM-16GB-R10
IPE-5320AWM-32GB-R10
IPE-5320AWM-64GB-R10
IPE-5320AWM-128GB-R10
IPE-5320AWM-256GB-R10
S.M.A.R.T
S.M.A.R.T Yes
Sequential R/W
Sequential R/W 525/185
Thermal Sensor
Thermal Sensor Wide temperature model only

Ordering Information

IPE-5320AWM-8GB-R10 Flash Disk; MSATA SATAIII Interface , MLC, -40℃~85℃, R:155MB/s W:80MB/s, 8GB
IPE-5320AWM-64GB-R10 Flash Disk; MSATA SATAIII Interface , MLC, -40℃~85℃, R:520MB/s W:185MB/s, 64GB
IPE-5320AWM-32GB-R10 Flash Disk; MSATA SATAIII Interface , MLC, 0-40℃~85℃, R:520MB/s W:180MB/s, 32GB
IPE-5320AWM-256GB-R10 Flash Disk; MSATA SATAIII Interface , MLC,-40℃~85℃, R:520MB/s W:170MB/s, 256GB
IPE-5320AWM-16GB-R10 Flash Disk; MSATA SATAIII Interface , MLC, -40℃~85℃, R:315MB/s W:150MB/s, 16GB
IPE-5320AWM-128GB-R10 Flash Disk; MSATA SATAIII Interface , MLC, -40℃~85℃, R:525MB/s W:175MB/s, 128GB
IPE-5320AM-8GB-R10 Flash Disk; MSATA SATAIII Interface , MLC, 0℃~70℃, R:155MB/s W:80MB/s, 8GB
IPE-5320AM-64GB-R10 Flash Disk; MSATA SATAIII Interface , MLC, 0℃~70℃, R:520MB/s W:185MB/s, 64GB
IPE-5320AM-32GB-R10 Flash Disk; MSATA SATAIII Interface , MLC, 0℃~70℃, R:520MB/s W:180MB/s, 32GB
IPE-5320AM-256GB-R10 Flash Disk; MSATA SATAIII Interface , MLC, 0℃~70℃, R:520MB/s W:170MB/s, 256GB
IPE-5320AM-16GB-R10 Flash Disk; MSATA SATAIII Interface , MLC, 0℃~70℃, R:315MB/s W:150MB/s, 16GB
IPE-5320AM-128GB-R10 Flash Disk; MSATA SATAIII Interface , MLC, 0℃~70℃, R:525MB/s W:175MB/s, 128GB

Download Specs.
