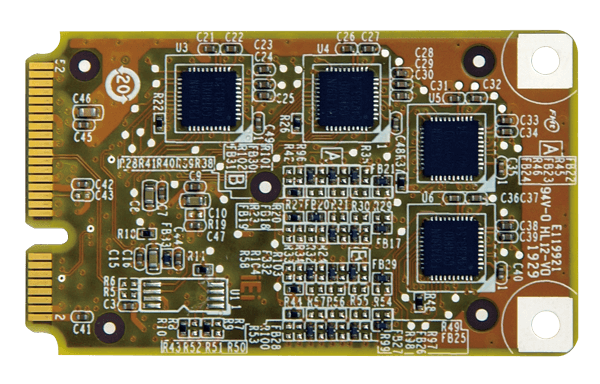

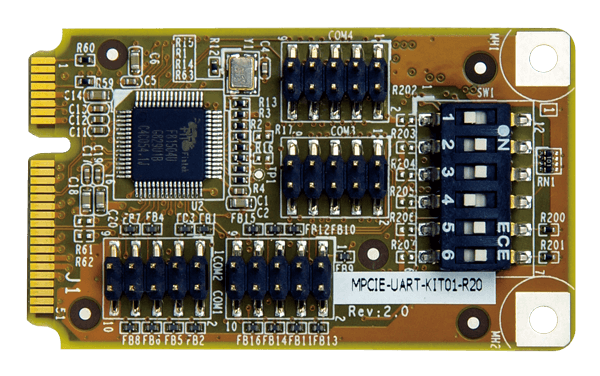

MPCIE-UART-KIT01

PCI Express Mini Card Supports Quad-port RS-232/422/485, Full Size

  • Overview
    ● PCI Express Mini supports quad-port RS-232/422/485
    ● 128 bytes transmit/receive FIFO
    ● High-speed 16C550/16C650/16C750/16C850 compatible UARTs
    ● Baud rate supports 115.2K, max. up to 1.5M

  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form Factor
      Form FactorPCI Express Mini Card
      Physical Characteristics
      Dimensions (LxWxH) (mm)51 X 30
      Net Weight50g
      Environment
      Operating Temperature0°C ~ 60°C
      Storage Temperature-10°C ~ 70°C
      Humidity5% ~95%, non-condensing
      Certifications
      Safety & EMCCE/FCC compliant
      Card Slot Interface
      PCIeMini card

    • Ordering Info.

      Item No. Description
      MPCIE-UART-KIT01-R20 PCI Express Mini supports Quad RS-232/422/485 Port module, Full size, RoHs
      E-MPCIE-UART-KIT01-R20 PCI Express Mini supports Quad RS-232/422/485 Port module, Full size, for E-Window, RoHs
