End of Life Notice
* Effective Date: 2021/02/24
» Supports two external USB 3.0 type A ports
» USB 3.0 provides up to 5Gbps of transferring rate
» Backward compatible with USB 2.0 and USB 1.0/1.1 devices
» Fully compliant with USB 3.0 rev 1.0 specifications and Intel® xHCI rev 0.96 specifications, with transfer rates up to 5Gbps
» Compliant with PCI Express Mini specification 1.2
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | PCI Express Mini Card |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 50 X 30 |
| Net Weight | 70g |
| Power | |
| Input | 1 x 4-pin box header |
| Power Consumption | 5V@0.32A |
| Power Requirement | 5V Power Input |
| Environment | |
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -20°C ~ 70°C |
| Humidity | 5% ~95%, non-condensing |
| Certifications | |
| Safety & EMC | CE/FCC compliant |
| Card Slot Interface | |
| PCIe | Mini card |
Ordering Information

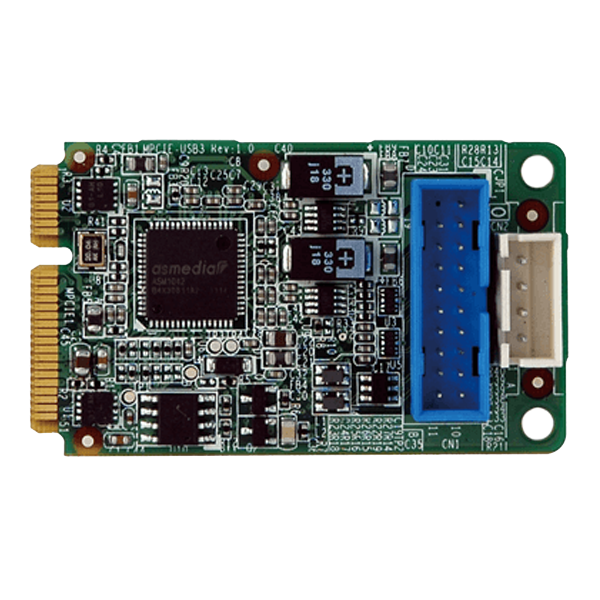

| MPCIE-USB3-R10 | Mini PCI Express USB 3.0 adapter card,RoHs |
|---|
