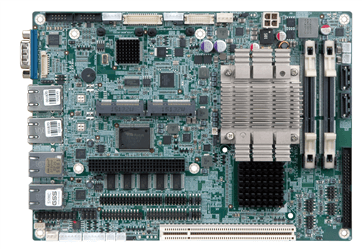

NOVA-PV-D5251

5.25” SBC, Intel® Atom™ D425/D525

End of Life

End of Life Notice

* Effective Date: 2017/12/30

» 5.25” SBC supports Intel® Atom™ D525/D425 processor
» 800/1066 MHz DDR3 supports up to 4 GB
» VGA/18-bit single-channel/24-bit dual-channel LVDS for dual independent display support
» Quad PCIe Ethernet, two SATA 3Gb/s, and six RS-232 serial port connectors
» TPM V1.2 hardware security function supported by TPM module
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

CPU Cooler
CPU Cooler N/A
Display
Display Dual display supported
VGA (up to 2048x1536@60Hz)
18-bit single-channel LVDS (up to
1366x768@60Hz)
Environment
Humidity 5% ~ 95%, non-condensing
Operating Temperature -10°C ~ 60°C
Expansion Slots
Expansion Slots 1 x PCI-104
2 x Full-size PCIe Mini card slot
1 x PCI
I/O Interface
Audio Realtek ALC662 HD Audio codec
Digital I/O 1 x 24-bit digital I/O (2x15 pin)
Ethernet LAN1: Realtek RTL8111E PCIe GbE controller with ASF 2.0 support
I/O Interface
I/O Interface 1 x RS-232
7 x Internal RS-232
8 x Internal USB 2.0
1 x LPT
Power
Power consumption 12V@1.46A (Intel® Atom™ D525 1.8GHz with
two 800 MHz 1 GB DDR3 SO-DIMM)
Storage
Storage 1 x CF Type II
1 x IDE
2 x SATA 3Gb/s with 5V SATA power connector (no RAID)
System
Chipset Intel® ICH8M
CPU 1.8GHz Intel® Atom™ D525 dual-core
processor with 1MB L2 cache
Memory Max. Two 204-pin 800 MHz DDR3 SDRAM SODIMM
supports up to 4 GB
Watchdog Timer
Watchdog Timer Software programmable supports 1~255 sec.

Ordering Information

NOVA-PV-D5251-G2L2-R12 5.25" SBC,Intel Dual Core Atom D525 1.8GHz,DDR3,18+48 bits LVDS/VGA,Dual PCIe Mini,Dual PCIe GbE,USB2.0,SATAII,Audio,RoHS
NOVA-PV-D5251-G4-R12 5.25" SBC,Intel Dual Core Atom D525 1.8GHz,DDR3,18 bits LVDS/VGA,Dual PCIe Mini,Quad PCIe GbE,USB2.0,SATAII,Audio,RoHS

Package Contents

Package Content
  • 1 x NOVA-PV-D5251 single board computer

  • 1 x Audio cable

  • 1 x VGA cable

  • 1 x KB/MS Y cable 1 x Mini jumper pack

  • 1 x Quad port RS-232 cable

  • 1 x One Key Recovery CD

  • 1 x SATA with power cable kit
