End of Life Notice
* Effective Date: 2018/04/17

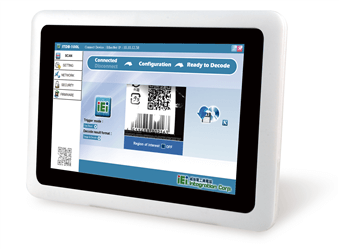

» 10.1” TFT LCD with capacitive touch
» Intel® Celeron® 1007U or Intel® Core™ i7-3517UE platform
» Powered by Windows® Embedded Standard 7
» Built-in Bluetooth and Wi-Fi
» Built-in smart card reader and magnetic stripe card reader
» 1D/2D barcode reader, 13.56MHz RFID reader
» Optional Windows® 8 operating system
Hardware Spec.
| Display | |
|---|---|
| Brightness(cd/m2) | 350 |
| LCD Size | 10.1” TFT LCD |
| Max Resolution | 1280 x 800 |
| Touch Screen | Capacitive type |
| Viewing Angle | 85/85/85/85 Deg. |
| Environment | |
| Humidity | 5%~95%, non-condensing |
| Operating Temperature | 0°C~40°C |
| I/O Interface | |
| I/O Interface | 2 x USB 2.0 |
| 1 x Mic | |
| 1 x Speaker | |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 290 x 206.5 x 22.5 |
| Net Weight | 1.1 kg |
| System | |
| CPU | Intel® Celeron® 1007U or Intel® Core™ i7-3517UE platform |
| On-board Memory | On-board 4GB DDR3 |
Ordering Information
| ICECARE-10W-CE-R10 | Intel Celeron 1007U CPU, Capacitive touch, IPS panel, 4GB RAM, 32G SSD, 802.11 b/g/n&BT, 1D/2D Barcode, MSR, SCR, RFID, WS7P, RoHs |
|---|---|
| ICECARE-10W-I7-R10 | Intel Core I7-3517U 1.9GHz CPU, Capacitive touch, IPS panel, 4GB RAM, 32G SSD, 802.11 b/g/n&BT, 1D/2D Barcode, MSR, SCR, RFID, WS7P, RoHs |
| ICECARE-10W-I7-ET-R10 | Intel Core I7-3517U 1.9GHz CPU, Capacitive touch, IPS panel, 4GB RAM, 32G SSD, 802.11 b/g/n&BT, RFID, WS7P, RoHs |
| ICECARE-10W-CE-ET-R10 | Intel Celeron 1007U CPU, Capacitive touch, IPS panel, 4GB RAM, 32G SSD, 802.11 b/g/n&BT, RFID, WS7P, RoHs |
