» RoHS compliant design
» One, 8 cm cooling fan with replaceable fan filter

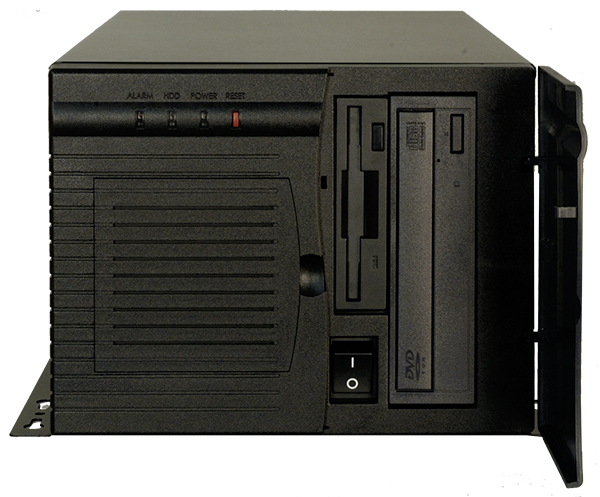

» Plastic front panel with cover door
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor | Full-size, slot CPU card |
| I/O Interface | |
| I/O Openings | 1 x LPT, 1 x COM |
| Expansion Slots | |
| Expansion Slots | 6 slots |
| System | |
| Cooling method / System Fan | 1 x 8 cm |
| Drive Bays |
1 x front- accessible 3.5" 1 x 5.25" 1 x 3.5" HDD |
| Indicator&Buttons | |
| Buttons | Power switch, reset |
| Indicators | Power, HDD |
| Physical Characteristics | |
| Construction | Metal with plastic front panel |
| Color | |
| Color | B: Black |
| Dimensions | |
| Dimensions | 421 mm x 232 mm x 176 mm(DxWxH) |
| Weight | |
| Weight | 5.6 kg/8.8 kg(Net/Gross) |
| Environment | |
| Operating Temperature | 0°C ~ 50°C |
| Humidity | 10% ~ 90% |
Ordering Information
| PAC-1000GBPX-R30/300W | 6-Slot Full-size Chassis,Black,Powder paint,1x 8 cm fan,with 300W ATX PSU,RoHS |
|---|---|
| PAC-1000GBPX-R30 | 6-Slot Full size Chassis,ATX Power Switch,Black,Powder paint,W/O PSU,RoHS |
