End of Life Notice
* Effective Date: 2018/09/04

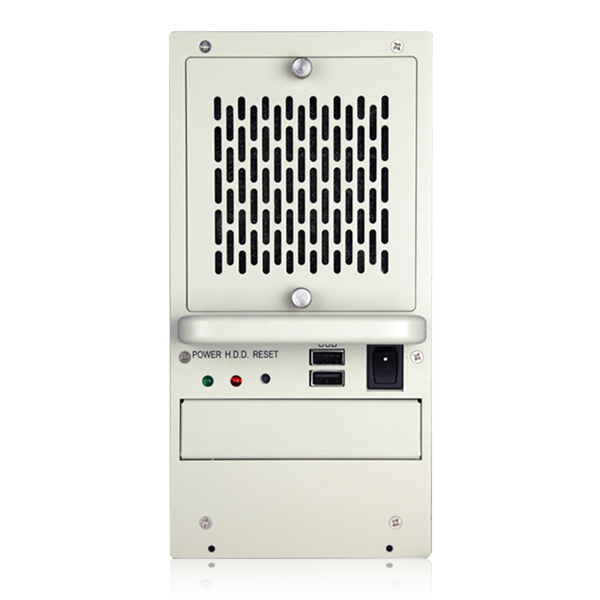

» RoHS compliant design
» 2 x USB ports on front panel
» 1 x front-accessible 3.5” and 1 x 3.5” HDD drive capacity
» Hot-swappable 8 cm cooling fan
» 19” rack-mountable carrier (optional)
Hardware Spec.
| Color | |
|---|---|
| Color | W: White/B: Black |
| Dimensions | |
| Dimensions | 440.2 mm x 110.6 mm x 221.3 mm(DxWxH) |
| Environment | |
| Humidity | 10% ~ 90% |
| Operating Temperature | 0°C ~ 50°C |
| Expansion Slots | |
| Expansion Slots | 5 slots |
| Form factor | |
| SBC Form Factor | Full-size, slot CPU cards |
| I/O Interface | |
| I/O Openings | 1 x LPT, 1 x COM |
| I/O Ports | 2 x USB |
| Indicator&Buttons | |
| Buttons | Power switch, reset |
| Indicators | Power, HDD |
| Physical Characteristics | |
| Construction | Heavy duty metal |
| System | |
| Cooling method / System Fan | 1 x 8 cm |
| Drive Bays |
1 x front-accessible 3.5” 1 x 3.5” HDD |
| Weight | |
| Weight | 6 kg/9 kg(Net/Gross) |
Ordering Information
| RACK-500GB-R21/A618B | 5U Height 5 Slots Full size Chassis,Black,1x 8cm fan,with ACE-A618B-RS-R10(180W),RoHS |
|---|---|
| RACK-500GW-R21/A618B | 5U Height 5 Slots Full size Chassis,White,1x 8cm fan,with ACE-A618B-RS-R10(180W),RoHS |
