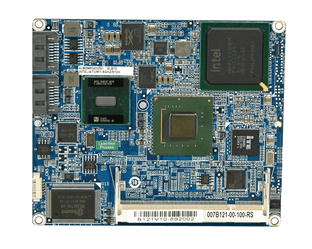

IEM-945GSE-N270

ETX 3.0 CPU Module with Intel® Atom™ processor

End of Life

End of Life Notice

* Effective Date: 2017/09/04

» ETX 3.0 CPU module with two on-board SATA 1.5Gb/s ports
» Support four PCI, one ISA slot for expansion
» Support dual display for VGA + LVDS
» Support four USB 2.0, two SATA, one IDE interface
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

System CPU
Chipset Intel® 945GSE + Intel® 82801GBM/ICH7M
Memory Max. One 200-pin 533/400MHz DDR2 SO-DIMM
supported (system max. 2GB)
I/O Interface Ethernet
Digital I/O
Display VGA/TV-Out integrated in Intel® 945GSE
(to baseboard)
18-bit dual-channel LVDS signal (to baseboard)
Audio
Expansion 4 x PCI, 32-bit 33MHz PCI bus to baseboard
ISA supported by ITE IT8888G
I/O Interface
Power Power consumption
Environment Operating Temperature
Humidity 10% ~ 95%, non-condensing
Watchdog Timer Watchdog Timer
Super IO Super IO
I/O Interface I/O Interface
1 x LPT
2 x USB2.0

Ordering Information

IEM-945GSE-N270-R11 ETX 3.0 Module with Intel ATOM N270 1.6G,VGA/LVDS,LAN RTL8111E,USB,SATA and Audio
