End of Life Notice
* Effective Date: 2021/12/16

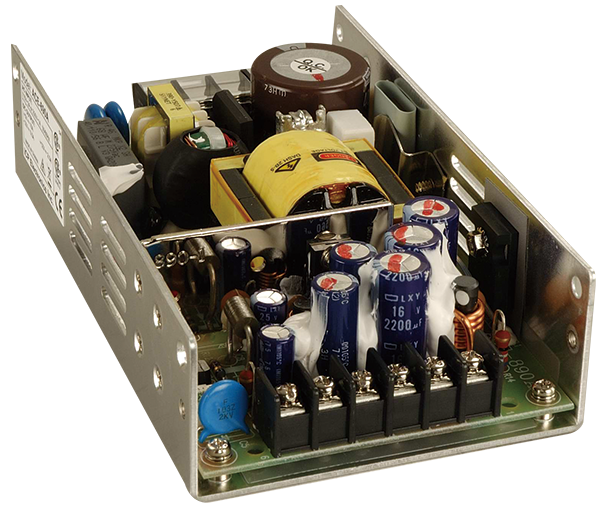

86 W AC-DC Open Frame AT Power Supply
Hardware Spec.
| General | |
|---|---|
| Dimensions | 152.4 x 89 x 39 |
| Efficiency | 70% |
| MTBF | 268000 |
| Operating temperature | 0°C ~ 50°C |
| Output Connector | Optional cable |
| Storage temperature | -20°C ~ 85°C |
| Watt | 86W |
| Input | |
| Voltage | 85 ~ 264 VAC Full Range |
| Frequency | 47 Hz ~ 63 Hz |
| Input Current | 2A (RMS)@115VAC, 1A (RMS)@230VAC |
| Inrush Current | 25A max. for 115VAC, 50A max. for 230VA |
| Output | |
| Voltage | +5V/10A,+12V/2.5A,-12V/0.5A |
Ordering Information
| ACE-890A-RS | 86W AC input industrial AT power supply;CCL;RoHS |
|---|
