End of Life Notice
* Effective Date: 2013/08/13
Hardware Spec.
| Connectors | |
|---|---|
| Connectors | 3 x U.FL (I-PEX) antenna connectors |
| Controller Chip | |
| Controller Chip | Ralink RT3593 |
| Dimensions | |
| Dimensions | 28 mm x 30 mm x 4 mm |
| Environment | |
| Humidity |
Operating: 10% ~ 90%, non-condensing Storage: 5% ~ 95%, non-condensing |
| Operating Temperature | -10°C ~ 70°C |
| Safety & EMC | CE/FCC/TELEC |
| Storage Temperature | -40°C ~ 150°C |
| Frequency Range | |
| Frequency Range | 2.4/5GHz |
| I/O Interface | |
| I/O Interface | PCIe Mini card |
| Modulation Type | |
| Modulation Type |
802.11a (OFDM) 802.11b (DSSS): CCK, DQPSK, DBPSK 802.11g (OFDM): BPSK, QPSK, 16-QAM, 64-QAM 802.11n (OFDM): BPSK, QPSK, 16-QAM, 64-QAM |
| Power | |
| Power consumption |
430mA@3.3V in continuous Tx 460mA@3.3V in continuous Rx |
| Rate | |
| Rate | 450 Mbps PHY rate in 3T3R mode |
| Receiver Sensitivity | |
| Receiver Sensitivity |
802.11a: -71dBm (Typical) at 54 Mbps 802.11b: -80dBm (Typical) at 11 Mbps 802.11g: -73dBm (Typical) at 54 Mbps 802.11n: -71dBm (Typical) at 450 Mbps |
| Security | |
| Security | WEP 64/128, WPA, WPA2, WAPI |
| Standards | |
| Standards | IEEE 802.11a/b/g/n, Wi-Fi compliant |
| System | |
| Supported OS | WindowsR XP, CE6.0, XPE, 2000, ME, 98SE, Vista 32/64, WindowsR 7 32/64, MAC |
| Weight | |
| Weight | NW: 11g |
Ordering Information
| WMUSB-V01-R20 | 802.11 b+g Wireless USB module with VIA VT6656,RoHS |
|---|---|

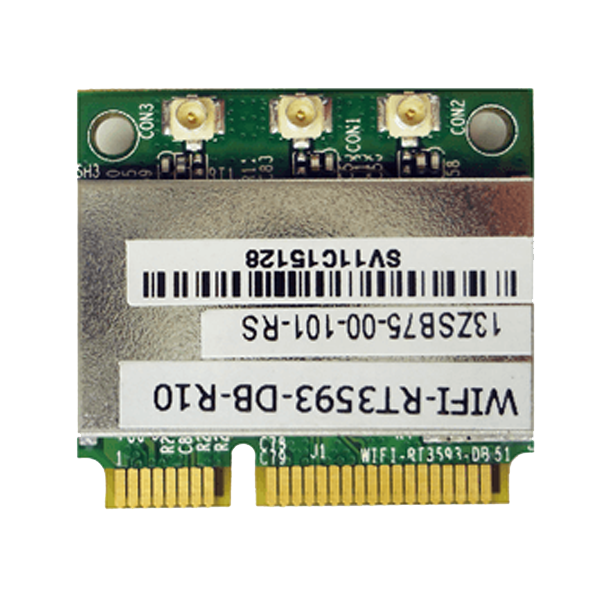

| WIFI-RT3593-DB-R10 | Wifi module with RT3593 single chip, 3T3R, dual band;ROHS |
| WMPCIE-V02-R10 | IEEE802.11a/b/g/n/ac Wireless with Bluetooth 4.0/3.0+HS Mini-PCIe module with Realtek RTL8821AE,RoHS |
