End of Life Notice
* Effective Date: 2016/08/19

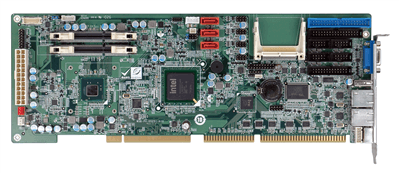

» PICMG 1.0 and RoHS compliant
» Intel® Atom™ processor N270 at 1.6GHz core speed with a 533 MHz FSB and 512KB L2 cache
» Enhanced technology for lower power consumption
» Two SATA and CF Type I/II for data storage
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
» Intel® Atom™ processor N270 at 1.6GHz core speed with a 533 MHz FSB and 512KB L2 cache
» Enhanced technology for lower power consumption
» Two SATA and CF Type I/II for data storage
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
Hardware Spec.
| System | CPU |
|---|---|
| Chipset | Intel® ICH7M |
| Memory Max. |
One 240-pin 533/400 MHz DDR2 SDRAM DIMM supported (system max. 2GB) |
| CPU Socket | On board |
| I/O Interface | Ethernet |
| Digital I/O | 8-bit Digital I/O (4-bit input/4-bit output) |
| Display | VGA integrated in Intel® 945GSE |
| Audio |
Support 7.1 channel HD audio or 5.1 channel AC-97 audio by IEI audio kits |
| Power | Power consumption |
| Environment | Operating Temperature |
| Humidity | 5% ~ 95%, noncondensing |
| Option | iRIS |
| Storage | Storage |
| Expansion Slots | Expansion Slots |
| Watchdog Timer | Watchdog Timer |
| CPU Cooler | CPU Cooler |
| I/O Interface | I/O Interface |
| 6 x Internal USB 2.0 | |
| 1 x KB/MS | |
| 1 x LPT | |
| 1 x USB 2.0 |
Ordering Information
| WSB-945GSE-N270-R10 | PICMG 1.0 CPU CARD with Intel ATOM N270 1.6G,VGA,Dual GbE,SATA,USB 2.0 and Audio,RoHS |
|---|
