End of Life Notice
* Effective Date: 2019/09/25

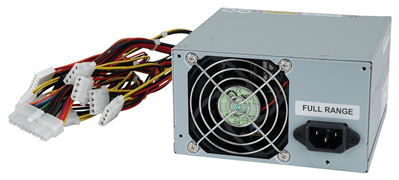

400 W PS/2 ATX Power Supply with ErP
Hardware Spec.
| General | |
|---|---|
| Dimensions | 140 x 150 x 86 |
| Efficiency | 85% |
| MTBF | 100,000 |
| Operating temperature | -5°C ~ 50°C |
| Output Connector | 1 x 20-pin ATX, 1 x 4-pin 12V CPU, 8 x HDD/CDROM, 2 x FDD, 1 x Extra +5V (P10) |
| Storage temperature | -20°C ~ 80°C |
| Watt | 400W |
| Input | |
| Voltage | 90~264 VAC Full Range |
| Frequency | 47 Hz ~ 63 Hz |
| Input Current | 6A (RMS)@115VAC, 3A (RMS)@230VAC |
| Inrush Current |
65A max. for 115VAC 147A max. for 230VAC |
| Output | |
| Voltage | +3.3V/21A,+5V/20A,+12V1/16A,+12V2/16A,-12V/0.5A,-5V/0.3A,+5Vsb/3A |
| Over Voltage Protection |
5V: 5.5V-6.82V +12V1 and +12V2: 13.4V-15.6V 3.3V: 3.5V-4.5V |
| Short Circuit Protection | +3.3V, +5V, +12V or -12V shutdown and latch off |
Ordering Information

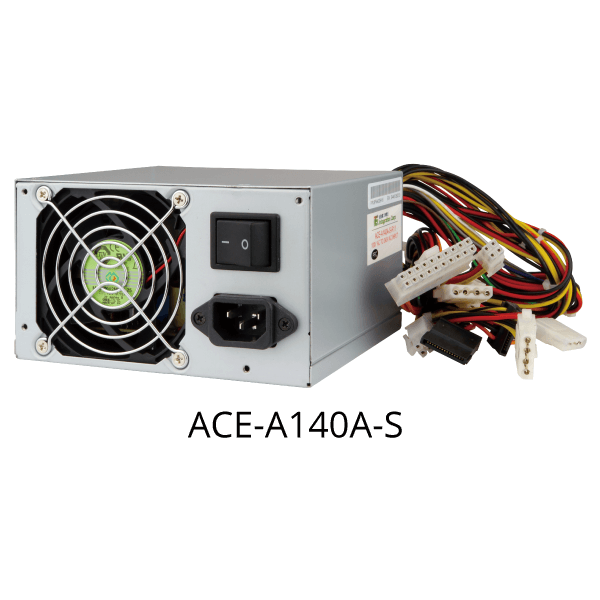

| ACE-A140A-S-R11 | 400W PS/2 ATX Power Supply with ERP & on/off switch,CCL;RoHS |
|---|---|

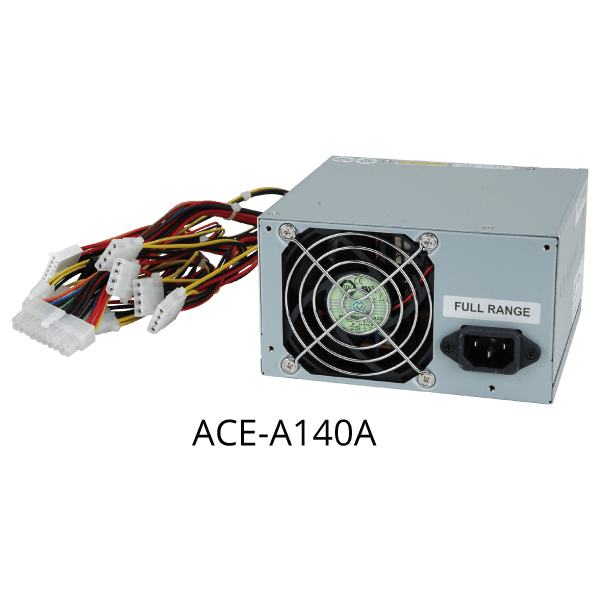

| ACE-A140A-R11 | 400W PS/2 ATX Power Supply with ERP,CCL,RoHS |
