End of Life Notice
* Effective Date: 2020/06/02

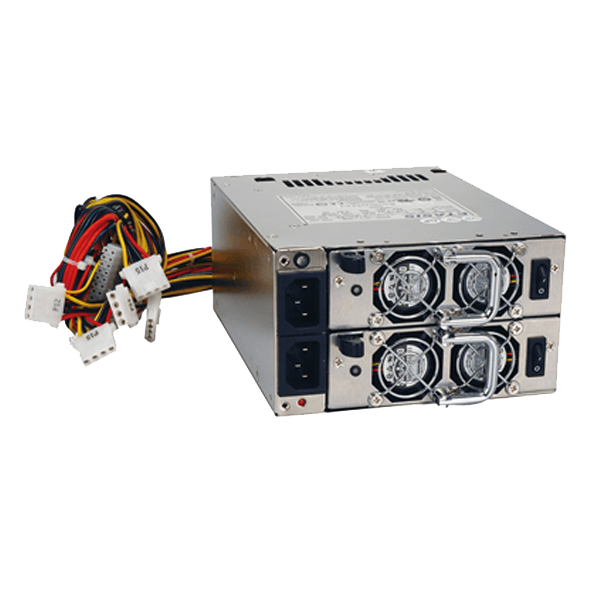

400 W ATX Mini Redundant Power Supply
Hardware Spec.
| General | |
|---|---|
| Dimensions | 150 x 85 x 190 (mm) |
| Efficiency | 65% |
| MTBF | 120,000 |
| Operating temperature | 0°C ~ 50°C |
| Output Connector | 1 x 20+4-pin ATX, 1 x 4-pin 12V CPU, 8 x HDD/CDROM, 2 x FDD, 2 x SATA, 1 x Buzzer reset,1 x T.T.L signal, 1 x LED power |
| Storage temperature | -40°C ~ 70°C |
| Watt | 400W |
| Input | |
| Voltage | 90 ~ 264 VAC Full Range |
| Frequency | 47 Hz ~ 63 Hz |
| Input Current | 8 A (RMS)@ 100 VAC, 4 A (RMS)@ 240 VAC |
| Inrush Current | 34.4A Max for 100 VAC,68A Max for 264VAC |
| Output | |
| Voltage | +5V/25A,+12V/30A,-12V/0.8A,+3.3V/25A,+5Vsb/2A |
Ordering Information
| ACE-R4140AP1-RS | 400W AC-DC ATX Redundant module, for ACE-R4140AP,with PFC,CCL;RoHS |
|---|---|
| ACE-R4140AP-RS | 400W ATX Redundant Power Supply,includes two ACE-R4140AP1-RS,with PFC function;CCL |
