End of Life Notice
* Effective Date: 2017/09/04
» 1.6 GHz Intel® Atom™ N270 CPU with ultra low voltage fanless support
» Single 12V power input, 5V output for SATA device
» Dual display supported by VGA+LVDS, VGA+TTL
» Support four COM, six USB, two SATA and CF Type II socket
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
» Single 12V power input, 5V output for SATA device
» Dual display supported by VGA+LVDS, VGA+TTL
» Support four COM, six USB, two SATA and CF Type II socket
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
Hardware Spec.
| Display | Display |
|---|---|
| System | CPU |
| Chipset |
Intel® 945GSE Intel® 82801GBM/ICH7M |
| Memory Max. |
One 200-pin 533MHz DDR2 SDRAM SO-DIMM slot support up to 2GB |
| CPU Socket | On Board |
| I/O Interface | Ethernet |
| Digital I/O | 1 x 8-bit digital I/O (2x5 pin) |
| Audio | Realtek ALC655 with AC'97 codec |
| I/O Interface | |
| Power | Power consumption |
| Environment | Operating Temperature |
| Humidity | 5% ~ 95% non- condensing |
| Option | iRIS |
| Storage | Storage |
| Expansion Slots | Expansion Slots |
| FSB | FSB |
| Watchdog Timer | Watchdog Timer |
| CPU Cooler | CPU Cooler |
| I/O Interface | I/O Interface |
| 3 x RS-232 | |
| 1 x LPT | |
| 6 x USB 2.0 |
Ordering Information

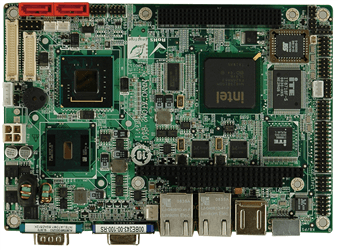

| NANO-945GSE2-N270-R10 | EPIC SBC with Intel ATOM N270 1.6G,VGA/LVDS/TTL,Dual GbE,CFII,USB,SATA and PC/104+ |
|---|---|
| NANO-945GSE2-N270W-R10 | EPIC SBC with Intel ATOM N270 1.6G,VGA/LVDS/TTL,Dual GbE,CFII,USB,SATA and PC/104+(-20~70°C) |
