End of Life Notice
* Effective Date: 2017/12/30

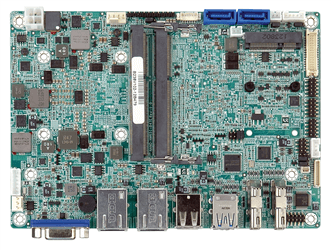

» EPIC SBC with on-board mobile 32nm Intel® Celeron® dual-core 847E 1.1GHz processor
» Dual HDMI™/VGA with dual display support
» Dual-channel 204-pin 1333/1066 MHz DDR3 SO-DIMMs support up to 8 GB
» Easy assembly heat spreader for thermal management
» Supports three COM, four USB 3.0, two SATA 6Gb/s and audio
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
Hardware Spec.
| CPU Cooler | |
|---|---|
| CPU Cooler | Heat Spreader |
| Display | |
| Display |
Dual display supported 1 x VGA 2 x HDMI™ 1 x 24-bit dual-channel LVDS |
| Environment | |
| Humidity | 5% ~ 95% non-condensing |
| Operating Temperature | -10°C ~ 60°C (14°F ~ 140°F) |
| Expansion Slots | |
| Expansion Slots |
1 x PCIe Mini card slot with mSATA support |
| I/O Interface | |
| Audio | Realtek ALC662 HD Audio codec |
| Digital I/O | 8-bit digital I/O (4-bit input / 4-bit output) |
| Ethernet |
Dual LAN: Realtek RTL8111E PCIe GbE controller with ASF 2.0 support |
| I/O Interface |
2 x RS-232 1 x RS-422/485 2 x USB 3.0 4 x USB 2.0 1 x 4-pin wafer for SMBus 1 x 4-pin wafer for I²C 1 x 6-pin wafer for PS/2 KB/MS 1 x TPM connector (2x10 pin) |
| I/O Interface | |
| I/O Interface | 2 x USB 3.0 |
| 2 x RS-232 | |
| 1 x RS-422/485 | |
| 4 x USB 2.0 | |
| Option | |
| iRIS | N/A |
| Power | |
| Power consumption |
12V@3.01A (Intel® Celeron® 847E 1.1GHz with 1333MHz 4GB memory) |
| Storage | |
| Storage | 2 x SATA 6Gb/s |
| System | |
| Chipset | Intel® HM65 |
| CPU | Intel® Celeron® 847E 1.1GHz |
| CPU Socket | On Board |
| Memory Max. |
2 x 204-pin 1066/1333MHz dual-channel DDR3 SO-DIMMs (system max. 16GB) |
| Watchdog Timer | |
| Watchdog Timer | Software programmable and supports 1~255 sec. system reset |
Ordering Information
| NANO-HM651-847E-R10 | EPIC SBC supports Intel Celeron dual core 847E 1.1GHz CPU,Dual DisplayPort/ VGA/ LVDS,Dual GbE,USB 2.0,PCIe Mini,SATA 6Gb/s,Audio and RoHS |
|---|
Package Contents
| Package Content |
|
|---|
