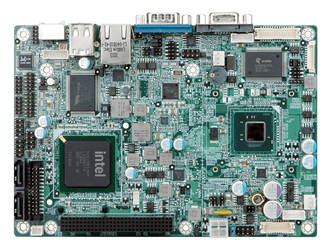

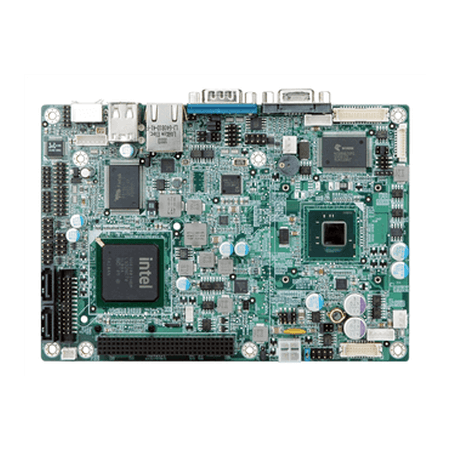

NANO-PV-D4251/N4551/D5251

EPIC SBC with Intel® Atom™ D425/N455/D525

End of Life

End of Life Notice

* Effective Date: 2017/12/30

» EPIC SBC with Intel® Atom™ D525/D425/N455 proccessor
» 800 MHz DDR3 SDRAM supported (system max. 2 GB)
» Support VGA and 18-bit single-channel LVDS with dual display
» Support PCI-104 and PCIe Mini card slot
» Support five COM, eight USB, two SATA 3Gb/s and one CF Type II socket
» TPM V1.2 hardware security function support by TPM module
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

Hardware Spec.

CPU Cooler
CPU Cooler Heatsink
Display
Display Dual display supported
1 x VGA
1 x 18-bit single-channel LVDS
Environment
Humidity 5% ~ 95% non-condensing
Operating Temperature -10°C ~ 60°C
Expansion Slots
Expansion Slots 1 x PCI-104 slot
1 x PCIe Mini card Slot
I/O Interface
Audio Realtek ALC888 HD Audio codec
Digital I/O 8-bit digital I/O
(4-bit input/4-bit output)
Ethernet Dual PCIe GbE by Realtek
RT8111E support ASF 2.0
I/O Interface 4 x RS-232
1 x RS-232/422/485
8 x USB 2.0
1 x TPM connector (2x10 pin)
1 x LPT
1 x KB/MS
I/O Interface
I/O Interface 8 x USB 2.0
4 x RS-232
1 x LPT
1 x RS-232/422/485
1 x RS-422/485
Power
Power consumption 2.21A @ 12V (Intel® Atom™
D525 with 2GB 1066MHz DDR3)
2.11A @ 12V (Intel® Atom™
D425 with 2GB 1066MHz DDR3)
2.00A @ 12V (Intel® Atom™
N455 with 2GB 1066MHz DDR3)
Storage
Storage 2 x SATA 3Gb/s
1 x CF Type II
System
Chipset Intel® ICH8M
CPU Intel® Atom™ D525 1.8GHz
Intel® Atom™ D425 1.8GHz
Intel® Atom™ N455 1.66GHz
CPU Socket On board
Memory Max. 1 x 204-pin 800 MHz 4 GB
DDR3 SO-DIMM (system max.
4GB) for D525/D425
1 x 204-pin 800 MHz 2 GB
DDR3 SO-DIMM (system max.
2GB) for N455
Watchdog Timer
Watchdog Timer Software programmable and supports 1~255 sec. system reset

Ordering Information

NANO-PV-D5251-R10 EPIC SBC with Intel Atom D525 1.8GHz,DDR3,VGA/LVDS,Dual GbE,USB 2.0,CF II,Audio and SATA II,Audio,RoHS
NANO-PV-D4251-R10 EPIC SBC with Intel Atom D425 1.8GHz,DDR3,VGA/LVDS,Dual GbE,USB 2.0,CF II,Audio and SATA II,Audio,RoHS
NANO-PV-N4551-R10 EPIC SBC with Intel Atom N455 1.66GHz,DDR3,VGA/LVDS,Dual GbE,USB 2.0,CF II,Audio and SATA II,Audio,RoHS

Package Contents

Package Content

  • 1 x NANO-PV-D4251/N4551/D5251 single board computer

  • 1 x Audio cable

  • 2 x RS-232 cable

  • 1 x Dual port USB cable

  • 1 x Mini jumper pack

  • 1 x KB/MS Y cable

  • 1 x One Key Recovery CD

  • 1 x Power cable

  • 1 x QIG

  • 1 x SATA with 5V output cable

  • 1 x Utility CD
