End of Life Notice
* Effective Date: 2017/09/04
» PICMG 1.3 and RoHS compliant
» Intel® Q35 & ICH9-DO platform
» Supports 45nm LGA 775 Intel® Core™2 Duo and Core™2 Quad processors
» Six SATA 3Gb/s ports with Intel® Matrix Storage Technology supported
» Intel® PCIe GbE
» TPM 1.2 IT security solution supported
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
» Intel® Q35 & ICH9-DO platform
» Supports 45nm LGA 775 Intel® Core™2 Duo and Core™2 Quad processors
» Six SATA 3Gb/s ports with Intel® Matrix Storage Technology supported
» Intel® PCIe GbE
» TPM 1.2 IT security solution supported
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
Hardware Spec.
| System | CPU |
|---|---|
| Chipset | Intel® Q35 + ICH9DO |
| Memory Max. |
Four 240-pin 667/800MHz dualchannel DDR2 SDRAM DIMMs (system max. 8GB) |
| CPU Socket | LGA775 |
| I/O Interface | Ethernet |
| Digital I/O | 8-bit Digital I/O (4-bit input/4-bit output) |
| Display |
1 x VGA SDVO output for dual display application (by IEI PCIe x16 SDVO add-on card) |
| Audio |
IEI AC-KIT-892HD-R10 7.1-channel HD audio kit via the on-board 10-pin header connector |
| Power | Power consumption |
| Environment | Operating Temperature |
| Humidity | 5% ~ 95%, non-condensing |
| Option | iRIS |
| Storage | Storage |
| Expansion Slots | Expansion Slots |
| Watchdog Timer | Watchdog Timer |
| CPU Cooler | CPU Cooler |
| I/O Interface | I/O Interface |
| 2 x Internal RS-232 | |
| 10 x Internal USB 2.0 | |
| 1 x KB/MS |
Ordering Information

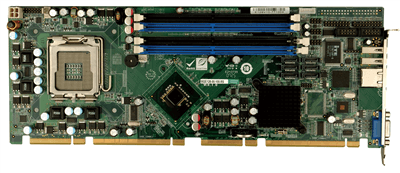

| PCIE-Q350-R13 | PICMG1.3 CPU Card supports Intel LGA 775 Core 2 Duo CPU in 45nm process at FSB800/1066/1333MHz,Intel Q35& CH9-DO platform, single Intel GbE,SATAII with RAID Functions,USB,HD Audio,ROHS |
|---|
