AFL3-W07A-BT

Intel® Celeron® N2807 (Dual Core, 1.58 GHz)

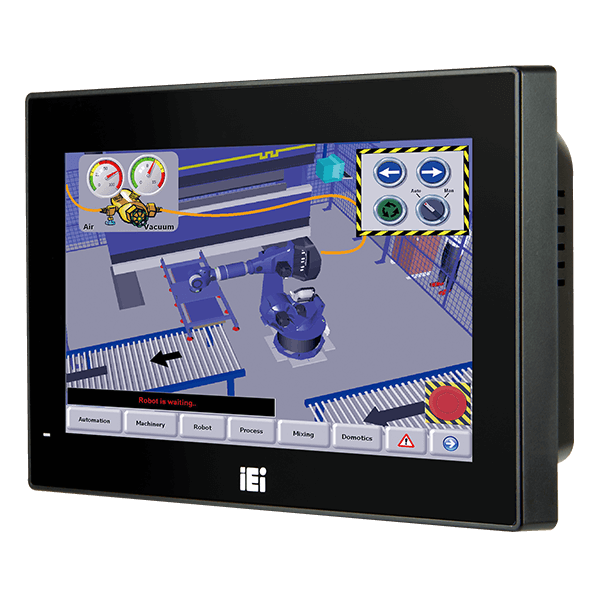

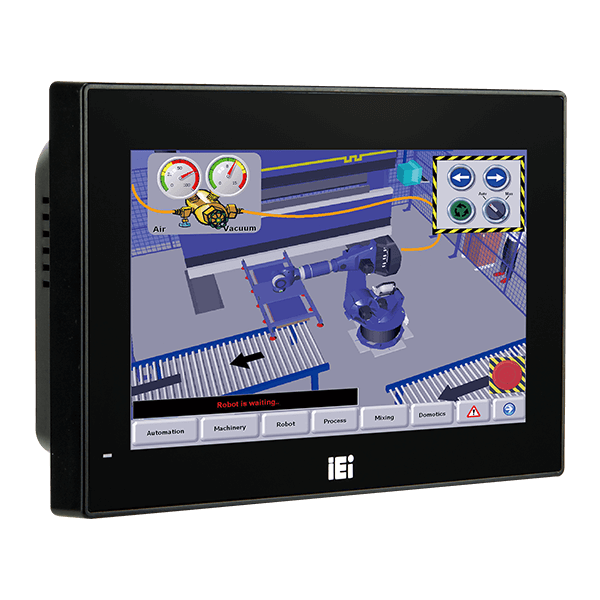

AFL3-W07A-BT Industrial Panel PC
AFL3-W07A-BT Industrial Panel PC
AFL3-W07A-BT Industrial Panel PC
  • AFL3-W07A-BT Industrial Panel PC
  • AFL3-W07A-BT Industrial Panel PC
  • AFL3-W07A-BT Industrial Panel PC
» W7”~8.4” light industrial interactive panel PC
» 9 V ~ 30 V wide range DC input with lockable DC jack
» Selectable AT/ATX power mode
» Built-in speakers
» One mSATA slot
» IP64/IP65 compliant front panel
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)

Specifications

Hardware Spec.

System
CPU Intel® Celeron® N2807 (dual core, 1.58 GHz)
Communication
Wi-Fi IEEE 802.11a/b/g/n/ac
I/O Interface
RAM 2GB DDR3L onboard RAM
I/O Ports and Switches 2 x RS-232 COM port (DB-9 connector)
2 x USB 3.2 Gen 1 (5Gb/s)
2 x GbE LAN
1 x Power switch
1 x Reset button
1 x AT/ATX switch
1 x 9-30V Lockable power jack
Power
Power Requirement 9~30 VDC
Environment
Operating Temperature -20°C~50°C
Storage Temperature -20°C~60°C
Storage
Storage mSATA
Dimensions
Dimensions 191 x 127 x 43
Weight
Weight 0.73 / 1.81 Kg
LCD
Size 7"
Resolution 1024 x 600
Brightness (cd/m2) 500
Contrast Ratio 700:1
LCD Color 16.2M
Pixel Pitch (mm) 0.0635 (H) x 0.1905 (V)
Viewing Angle (H-V) 150º/145º
Backlight MTBF 20000 hrs
Touch
Touch Screen Projected capacitive with USB interface
(anti-UV / anti-glare coating)
Touch Controller EETI EXC3160
Other Features
Camera N/A
Microphone N/A

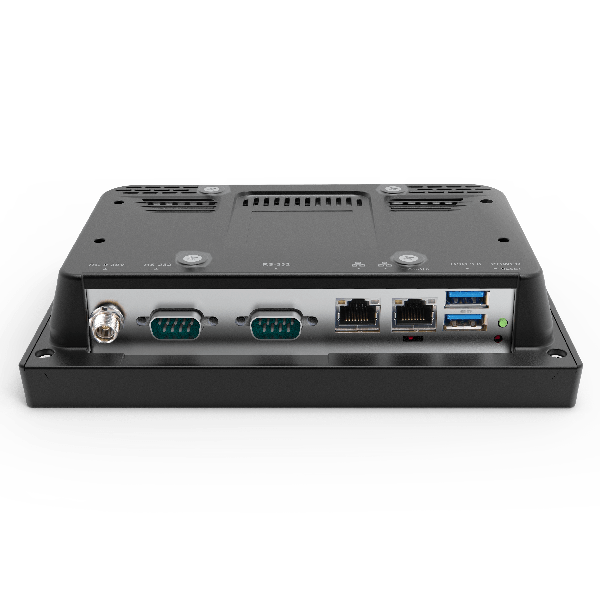

I/O Interface
I/O Interface 2 x RS-232 (COM port: DB-9 connector)
2 x USB 3.2 Gen1x1 (5Gb/s)
2 x LAN (GbE)
1 x DC Input Jack (9-30V Lockable power jack)
1 x Reset Button
1 x Power Switch
1 x AT/ATX switch

Ordering Information

AFL3-W07A-BT-N1/PC/2G-R21 7" 500cd/m2 1024x600 HD fanless panel PC with Intel Celeron N2807 dual core 1.58 GHz, 802.11a/b/g/n/ac wireless module, projected capacitive touch screen, on-board 2GB DDR3L RAM , with AG, R21

Package Contents

Package Content

  • 10 x Screw Pack M2

  • 1 x Power Adpater

  • 1 x Touch Pen

  • 1 x RJ45 to RS-232 Transfer Cable
