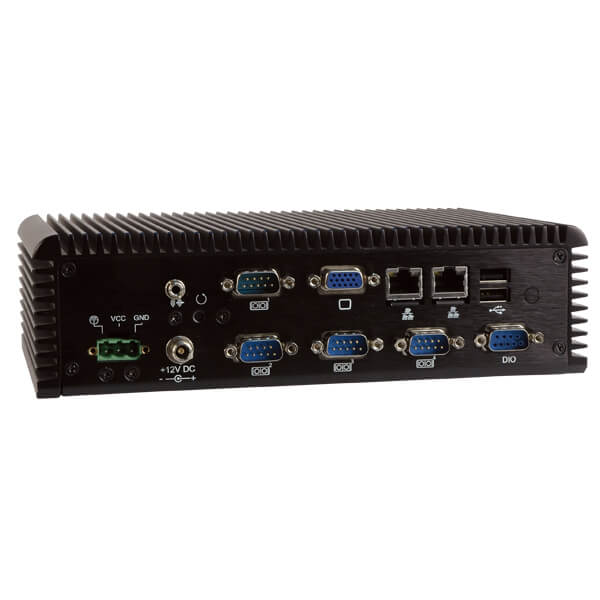

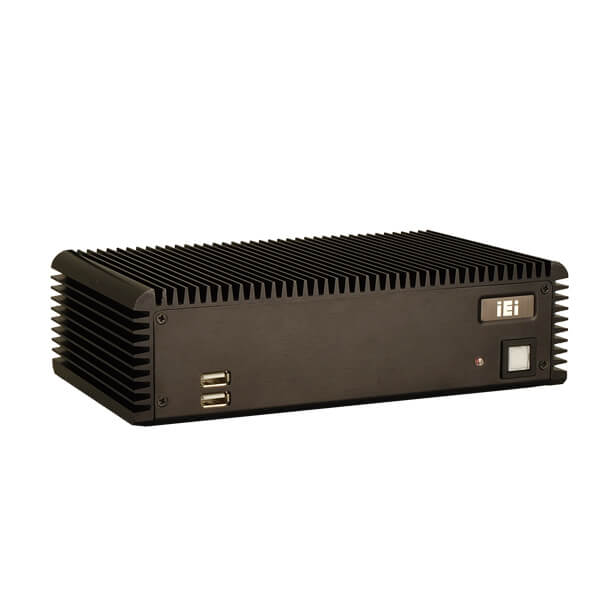

ECW-281B-D2550

无风扇嵌入式习题采用 Intel® Atom™ Dual-core D2550 CPU

End of Life

End of Life Notice

* Effective Date: 2018/07/18

» Fanless system with Intel® Atom™ D2550 dual-core 1.86 GHz CPU
» Supports 4 COM ports (3 x RS-232, 1 x RS-422/485)
» 2 PCIe Mini slots (1 x Full-size, 1 x Half-size)
» 12V DC and 9 V~36 V DC model available
» 2T2R 802.11b/g/n wireless model available

Hardware Spec.

Form factor
SBC Form Factor CPU:Intel® Atom™ dual-core D2550 1.86GHz
Chipset:Intel® NM10
System Memory:2GB DDR3 204-pin SO-DIMM memory pre-installed
I/O Interface
I/O Ports 4 x USB 2.0
Ethernet:2 x Realtek RTL8111E PCIe GbE controller
COM Port:
3 x RS-232
1 x RS-422/485
Digital I/O:8-bit digital I/O
Display:1 x VGA
Resolutio: VGA: Up to 1920 x 1200@60Hz
Audio:1 x Line-out
Wireless:1 x 802.11b/g/n (optional)
Expansion Slots
Expansion Slots 1 x Full-size (supports mSATA)
1 x Half-size
System
Cooling method / System Fan Fanless
Drive Bays 1 x 2.5' SATA HDD bay
Color
Color Black
Dimensions
Dimensions 229 x 64 x 132
Weight
Weight 2.1 kg / 3.9 kg
Environment
Operating Temperature -10°C~50°C with air flow (SSD)
Humidity 5% ~ 95%, non-condensing

Ordering Information

ECW-281BWD-R10/D2550/2GB Fanless embedded system with WAFER-CV-D25501,with dual core Intel ATOM D2550 1.86G, 4 serial ports,with 2GB DDR3 pre-installed SO-DIMM memory,9~36VDC in, black, RoHS
ECW-281B-R11/D2550/2GB Fanless embedded system with WAFER-CV-D25501,with dual core Intel ATOM D2550 1.86G, 4 serial ports,with 2GB DDR3 pre-installed SO-DIMM memory,12VDC in,60W power adapter , black, RoHS

Package Contents

Package Content
  • 1 x Power cord only for 12V

  • 1 x HDD thermal pad

  • 1 x 12V 60W power adapter only for 12V

  • 1 x Screw set

  • 1 x Wall mount bracket
