TANK-760-HM86

Intel® HM86 移动解决方案,三个独立的视频输出

End of Life

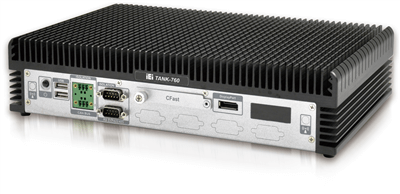

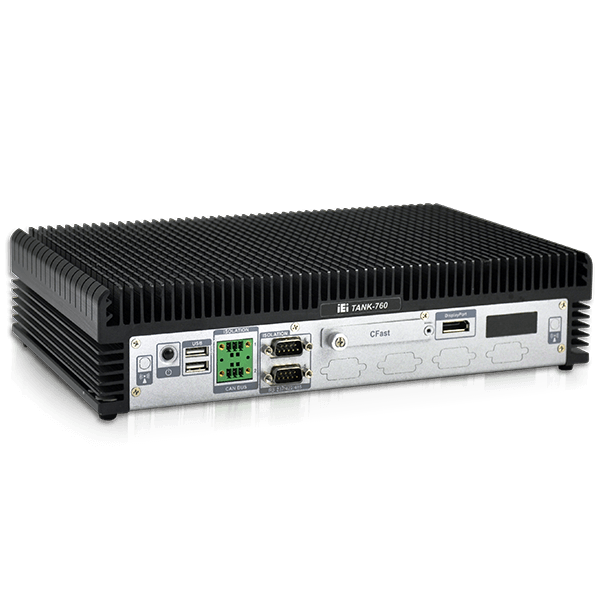

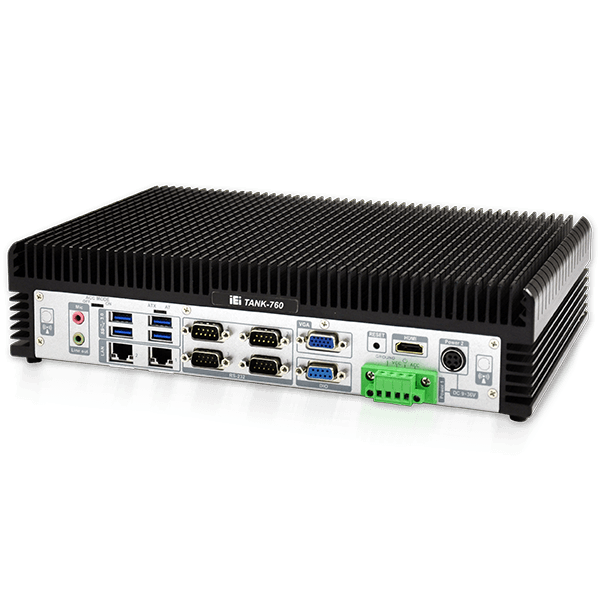

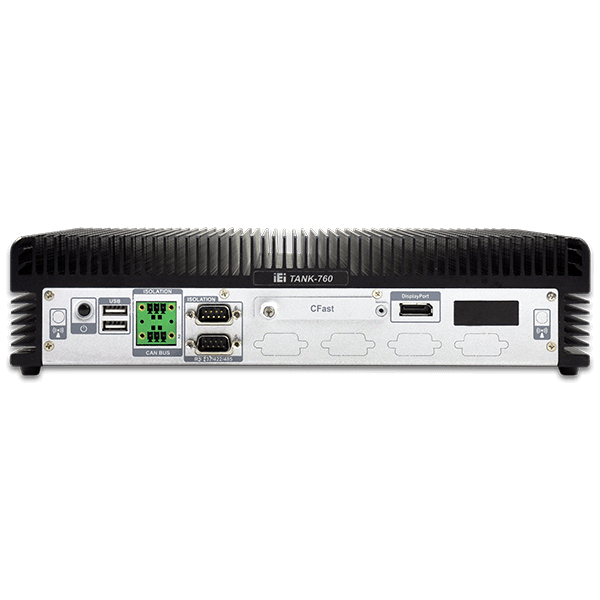

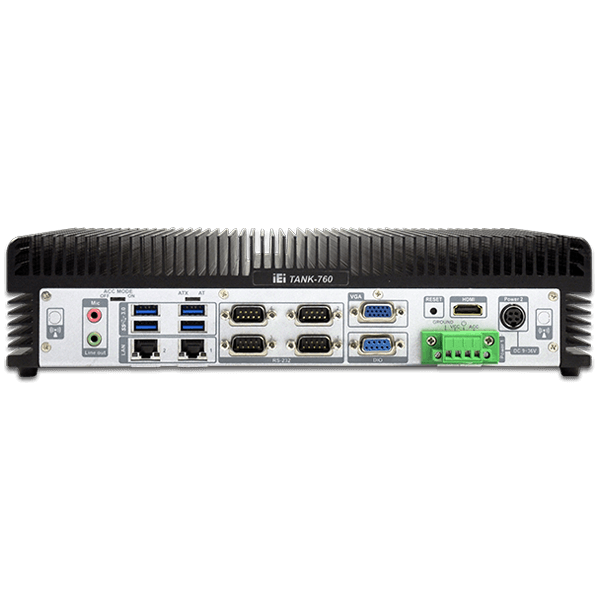

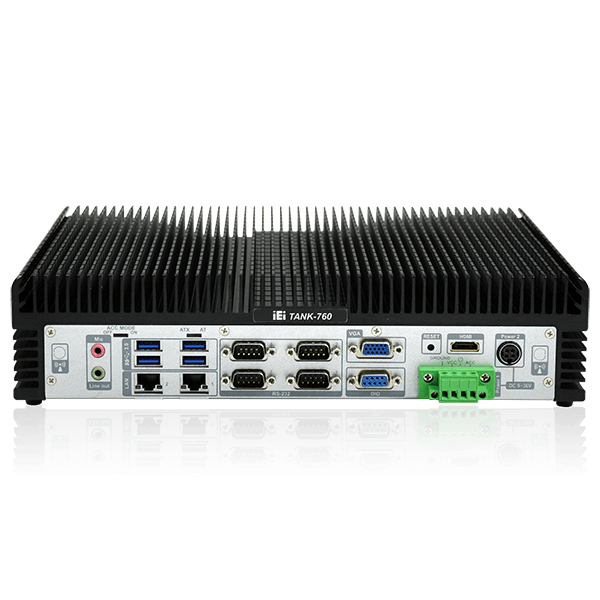

TANK-760-HM86-Fanless-box-PC
TANK-760-HM86-Fanless-box-PC
TANK-760-HM86-Fanless-box-PC
TANK-760-HM86-Fanless-box-PC
TANK-760-HM86-Fanless-box-PC
  • TANK-760-HM86-Fanless-box-PC
  • TANK-760-HM86-Fanless-box-PC
  • TANK-760-HM86-Fanless-box-PC
  • TANK-760-HM86-Fanless-box-PC
  • TANK-760-HM86-Fanless-box-PC

End of Life Notice

* Effective Date: 2019/03/18

» Intel® Core™ i5-4400E 2.7 GHz 双核处理器 Intel® Celeron® 2000E 2.2 GHz 双核处理器
» 一个 CFast 插座
» 支持三个独立的视频输出
» 内置两个 2.5" SATA 6Gb/s 硬盘仓
» 9 V~36 V DC 输入
» 支持 IEI iRIS-2400 (兼容 IPMI 2.0)

Hardware Spec.

Form factor
SBC Form Factor CPU
Intel® Core™ i7-4700EQ 2.4 GHz
Intel® Core™ i5-4400E 2.7 GHz
Intel® Celeron® 2000E 2.2 GHz
Chipset:Intel® HM86
System Memory
2 x 204-pin DDR3 SO-DIMM slot.
Pre-installed one 4GB SO-DIMM
(system max: 16 GB)
I/O Interface
I/O Ports 4 x USB 3.0
2 x USB 2.0
Ethernet:
2 x RJ-45
1 x PCIe GbE by Intel® I210
1 x PCIe GbE by Intel® I217LM
COM Port:
4 x RS-232 (DB-9, with isolation)
2 x RS-232/422/485 (DB-9, with isolation)
Digital I/O:8-bit digital I/O, 4-bit input/4-bit output
CAN-bus:2 x Phoenix terminal block with isolation
Display:1 x VGA, 1 x HDMI™, 1 x DisplayPort
Resolution:
VGA: Up to 1920 x 1200@60Hz
HDMI™: Up to 2500 x 1600@60Hz
DisplayPort: Up to 2500 x 1600@60Hz
Audio:1 x Line-out, 1 x Mic-in
Wireless:1 x 802.11b/g/n (optional)
Other:Reserved IO window for PCIe Mini card expasion
Expansion Slots
Expansion Slots PCIe:Mini 3 x Full Size (one co-lay mSATA)
System
Cooling method / System Fan Fanless
Drive Bays 2 x 2.5' SATA 6Gb/s HDD/SSD bay
Color
Color Black C + Silver
Dimensions
Dimensions 310 x 200 x 62
Weight
Weight 4.2 kg/6.9 kg
Environment
Operating Temperature -20°C ~ 70°C with air flow (SSD) i5-4400E & 2000E
-20°C ~ 50°C with air flow (SSD) for i7-4700EQ

Ordering Information

TANK-760-HM86i-i7/4G-R10 Fanless embedded system , Intel® Core™ i7-4700EQ Quad core 2.4GHz, TDP 47W, 4GB DDR3 pre-installed memory , VGA/HDMI™/Displayport, iRIS-2400 optional, 9~36V DC, RoHs, R10
TANK-760-HM86i-C/4G-R10 Fanless embedded system , Intel Celeron dual-core 2000E 2.2GHz, TDP 37W, 4GB DDR3 pre-installed memory , VGA/HDMI™/Displayport, iRIS-2400 optional, 9~36V DC, RoHs, R10
TANK-760-HM86i-i5/4G-R10 Fanless embedded system , Intel Core i5 dual-core i5-4400E 2.7GHz, TDP 37W, 4GB DDR3 pre-installed memory , VGA/HDMI™/Displayport, iRIS-2400 optional, 9~36V DC, RoHs, R10

Package Contents

Package Content
  • 1 x 电源适配器

  • 1 x 机箱螺丝

  • 1 x 电源线

  • 1 x 安装支架
