End of Life Notice
* Effective Date: 2017/12/29

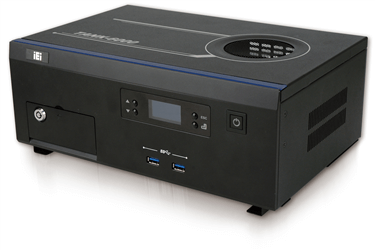

» 带有Intel® C226芯片组的工作站
» Intel® E3 1225 v3/i3 4330 高性能 CPU
» 支持两个 PCIe 采用 8 张扩展卡
» 4 x LAN 端口 (两个 SFP 光纤组合端口)
» 3 x 2.5’’ HDD/SSD bay
» 通过 IEI iRIS 解决方案支持 IPMI 2.0
» 支持可编程的 OLED 显示模块
Hardware Spec.
| 颜色 | |
|---|---|
| 颜色 | Black |
| 尺寸 | |
| 尺寸 | 310 x 199.5 x 112 |
| 运行环境 | |
| 湿度 | 5% ~ 95%, non-condensing |
| 操作温度 | -20°C ~ 55°C with air flow (SSD) |
| 扩展插槽 | |
| 扩展插槽 | PCIe:2 x PCIe x8 (Gen 3) |
| Form factor | |
| SBC Form Factor |
CPU: Intel® Xeon® E3 1225-v3 3.2 GHz Intel® Core™ i3 4330 3.5 GHz Chipset:Intel® C226 System Memory: 4 x 240-pin DDR3 U-DIMM,4 GB pre-installed (system max: 32 GB) |
| I/O 接口 | |
| I/O 端口 |
4 x USB 3.0 2 x USB 2.0 Ethernet: 4 x RJ-45 1 x PCIe GbE by Intel® i217 PHY 3 x PCIe by GbE Intel® i210 Fiber: 2 x Combo (SFP Fiber/RJ-45),combo with LAN 1/LAN 2 COM Port:2 x RS-232 (DB-9) Display:1 x HDMI™, 1 x VGA Resolution: HDMI™: Up to 1920 x 1200@60Hz VGA: Up to 1920 x 1200@60Hz Audio:1 x Line-out, 1 x Mic in |
| 系统 | |
| 散热方式 / 系统风扇 | 92 mm x 92 mm x 25 mm |
| 驱动仓 | 3 x 2.5' SATA 6Gb/s HDD/SSD drive bay |
| 重量 | |
| 重量 | 2.5 kg/4.6 kg |
Ordering Information
| TANK-6000-C226i-i3/4G-R11 | Embedded System with Intel C226 chipset, Intel dual-core i3- 4330 3.5GHz ,TDP 54W,OLED indicator, 2 x PCIe by 8 expansion, 3 x 2.5" SATA HDD bay,DDR3 U-DIMM 4GB pre-installed ( 2 x 2GB), iRIS-2400 supported, 19/24V DC,RoHS |
|---|---|
| TANK-6000-C226i-E3/4G-R11 | Embedded System with Intel C226 chipset, Intel quad-core Xeon E3-1225 v3 3.2GHz ,TDP 84W,OLED indicator, 2 x PCIe by 8 expansion, 3 x 2.5" SATA HDD bay,DDR3 U-DIMM 4GB pre-installed (2 x 2GB) , iRIS-2400 supported, 19/24V DC, RoHS |
Package Contents
| Package Content |
|
|---|
