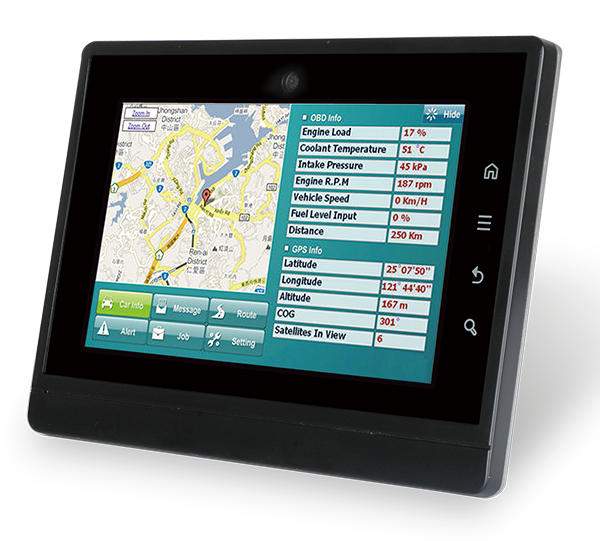

IKARPC-07A-BT

Vehicle Computer Series

End of Life

End of Life Notice

* Effective Date: 2021/11/08

» 7” sunlight readable TFT LCD with projected capacitive touchscreen
» Built-in HSUPA/GPRS/GSM, Wi-Fi and Bluetooth
» Built-in GPS receiver
» Supports On-Board Diagnostics: one CAN 2.0B or OBD-II

Hardware Spec.

Form factor
SBC Form Factor CPU: Intel® Atom™ processor E3826 (dual-core, 1.46 GHz, 7W)
Chipset: SoC
System Memory:On-board 2 GB SDRAM
I/O Interface
I/O Ports 20-pin Connector:
1 x GbE LAN
1 x OBD-II/CAN bus
1 x USB 2.0
24-pin Connector:
1 x Audio line-out (R+L)
1 x Audio line-in
1 x RS-232
4-bit digital I/O (2-bit input, 2-bit output)
1 x USB 2.0
1 x USB3.0
1 x HDMI™
2 x SIM slot
Expansion Slots
Expansion Slots 1 x Full-size PCIe Mini (reserved for mSATA module),
1 x Full-size PCIe Mini (reserved for 3G module),
1 x Half-size PCIe Mini (reserved for Wi-Fi module)
System
Cooling method / System Fan Fanless
Indicator&Buttons
Indicators Power/HDD/Wi-Fi/3G
Color
Color Black C + Silver
Dimensions
Dimensions 210 x 154 x 28
Weight
Weight 0.9 kg/2.1 kg
Environment
Operating Temperature -20°C ~ 60°C with air flow
Humidity 5% ~ 95%, non-condensing

Ordering Information

IKARPC-07A-BT-E3/2G-R10 7" 500 cd/m2 1024 x 600 In Vehicle Panel PC with Intel® Atom E3826 1.46GHz, 7W TDP, 2GB DDR3L on board memory, OBDII, GPS on board, 2M Camera, ROHS

Package Contents

Package Content
  • 1 x ACC power cable

  • 1 x GPS/GSM antenna
