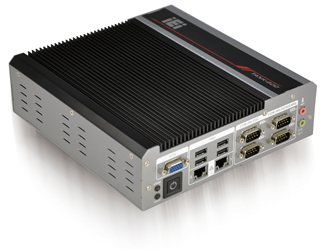

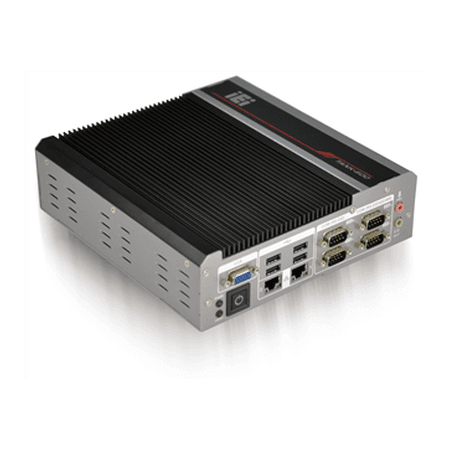

TANK-600-D2550/N2600

无风扇嵌入式系统，Intel® Cedarview 双核 Atom™ CPU

End of Life

End of Life Notice

* Effective Date: 2018/09/03

» Intel® Atom™ D2550 1.86 GHz 双核处理器 / Intel® Atom™ N2600 1.6 GHz 双核处理器
»  八个 COM 端口: 六个 RS-232 和 两个 RS-232/422/485
» 6 x USB 2.0
» 用于高速网络应用的双 PCIe GbE LAN

Specifications

Hardware Spec.

颜色
颜色 Black C + Silver
尺寸
尺寸 193.4 x 200 x 57
运行环境
湿度 5% ~ 95%, non-condensing
操作温度 -20°C ~70°C with air flow (SSD),
扩展插槽
扩展插槽 1 x Full size (co-lay mSATA)
1 x Half size
形态系数
SBC 形态系数 CPU:
Intel® Atom™ D2550 1.86 GHz
Intel® Atom™ N2600 1.6 GHz
Chipset:Intel® NM10
System Memory:
On-board DDR3 4/2 GB
I/O 接口
I/O 端口 6 x USB 2.0
Ethernet:
2 x RJ-45
PCIe GbE by Realtek 8111E
COM Port
6 x RS-232 (DB-9)
2 x RS-232/422/485 (DB-9)
Display:1 x VGA
1 x Line-out, 1 x Mic-in
系统
散热方式 / 系统风扇 Fanless
驱动仓 1 x 2.5' SATA 3Gb/s HDD/SSD bay
重量
重量 2.2 kg/3 kg

Ordering Information

TANK-600-CV-N2600-8C/2G-R11 Extend temperature Fanless embedded system with Intel® Cedarview N2600 1.6 GHz processor dual core CPU, with 2G DDR3 RAM onboard, 1xVGA, Dual GbE LAN, 6xUSB2.0 , 2xRS-232/422/485 , 6 x RS-232, RoHS
TANK-600-CV-D2550-8C/4G-R11 Extend temperature Fanless embedded system with Intel® Cedarview D2550 1.86GHz processor dual core CPU, with 4G DDR3 RAM onboard, 1xVGA, Dual GbE LAN , 6xUSB2.0 , 2xRS-232/422/485 , 6 x RS-232, RoHS

Package Contents

Package Content

  • 1 x 电源线

  • 1 x 电源适配器 (符合 PSE & ErP)

  • 1 x 壁挂式支架

  • 1 x 螺丝钉
