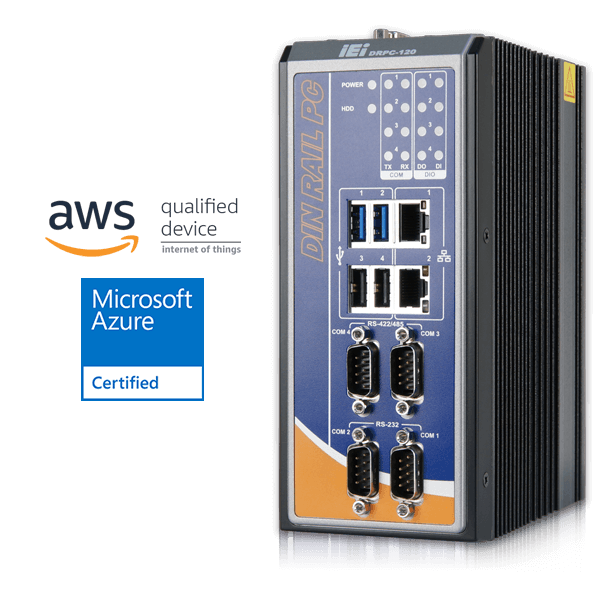

DRPC-120-BT

Fanless DIN-Rail Embedded System,Intel® E3845 1.91GHz Solution

End of Life

End of Life Notice

* Effective Date: 2022/06/08

» Intel® Atom™ E3845 1.91GHz
» 1 x 2.5” SATA HDD/SSD drive bay
» DDR3L 1.35V SO-DIMM support
» 8-bit digital I/O (4-bit inputs/outputs)
» IEI iRIS-2400 solution

Hardware Spec.

Form factor
SBC Form Factor CPU:
Intel® Atom™ E3845 1.91 GHz
Chipset:SoC
System Memory:
One 2 GB 204-pin DDR3L SO-DIMM pre-installed
(system max: 8 GB)
I/O Interface
I/O Ports 2 x USB 3.0
2 x USB 2.0
Ethernet:
2 x RJ-45
1 x PCIe GbE by Intel® I210 controller
1 x PCIe GbE by Intel® I211 controller
COM Port:
2 x DB-9 w/3KV isolation protection
2 x DB-9 w/3KV isolation protection
8-bit digital I/O, 4-bit input/4-bit output
1 x VGA, 1 x HDMI™
802.1 b/g/n 2T2R (optional)
Expansion Slots
Expansion Slots 1 x Half-size PCIe Mini slot (w/o USB signal)
1 x Full-size PCIe Mini slot (supports mSATA, colay with SATA)
System
Cooling method / System Fan Fanless
Drive Bays 1 x 2.5〞 SATA 6Gb/s HDD/SSD Bay
Indicator&Buttons
Indicators Power/HDD/Com port/DIO
Color
Color Black
Dimensions
Dimensions 74.08 x 140 x 171.5
Weight
Weight 1.4 kg/2.5 kg
Environment
Operating Temperature -20°C ~ 60°C with air flow (SSD)
Humidity 5% ~ 95%, non-condensing

Ordering Information

DRPC-120-BTi-E5-LED/2G-R11 Fanless embedded system, Intel® Bay-Trail E3845 1.91 GHz, TDP 10W, 2GB DDR3L pre-installed memory, 1 x VGA/HDMI™, 8 CH DIO, iRIS-2400 optional,9~30 VDC, LED indicators, RoHs

Package Contents

Package Content
  • 1 x Screw kit

  • 1 x Mounting bracket

  • 1 x SATA cable & SATA power cable
