End of Life Notice
* Effective Date: 2019/04/19

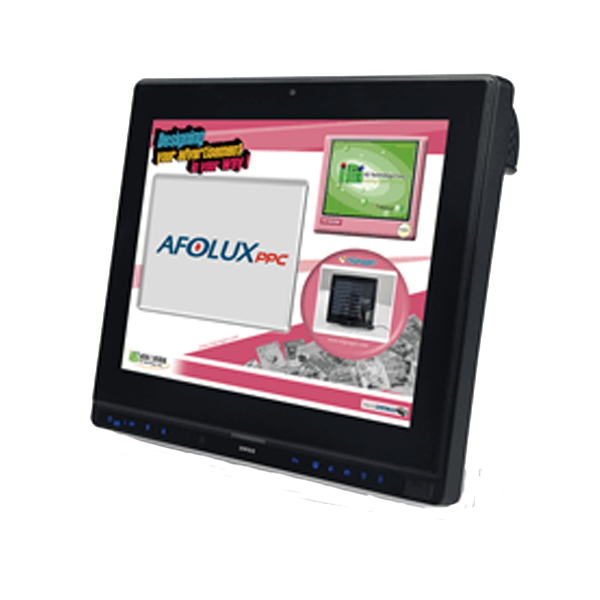

» 12.1” 600nits 1024 x 768 flat-bezel LCD with LED backlight
» Supports projected capacitive touchscreen or 5-wire resistive type touchscreen
» Built-in two 3W speakers and microphone
» GbE LAN for high speed network applications
» One 204-pin DDR3 SO-DIMM slot (system max. 4GB)
» Wi-Fi 802.11b/g/n high speed wireless
» EM or Mifare RFID reader
» IP 64 compliant front panel
» Auto-dimming control
» Built-in 2 megapixels webcam with AF AE and AWB capabilities
» Wide range 9~36 VDC input
Hardware Spec.
| Communication | |
|---|---|
| Wi-Fi | IEEE 802.11b/g/n |
| Dimensions | |
| Dimensions | 310 x 265 x 52.6 |
| Environment | |
| Operating Temperature | -20°C~50°C with SSD |
| Storage Temperature | -20°C~60°C |
| I/O Interface | |
| RAM | Support one 204-pin DDR3 SO-DIMM slot (Max. 4GB) |
| I/O Ports and Switches |
1 x RS-232 (DB-9) 1 x RS-232 (RJ-45) 1 x RS-422/485 (4-pin box header) 2 x GbE LAN (RJ-45) 2 x USB 2.0 2 x USB 3.0 1 x Mini USB 2.0 port on front panel 1 x Audio jack (line-out) |
| LCD | |
| Size | 12.1" |
| Resolution | 1024 x 768 |
| Brightness (cd/m2) | 600 |
| Contrast Ratio | 700:1 |
| LCD Color | 16.2M |
| Pixel Pitch (mm) | 0.240 (H) x 0.240 (V) |
| Viewing Angle (H-V) | 160º/140º |
| Backlight MTBF | 50000 (LED backlight panel) |
| Other Features | |
| Camera | 2 M pixels with low light function |
| System Cooling | Fanless |
| Power | |
| Power Requirement | 9~36 VDC |
| Storage | |
| Storage | 2.5" SATA 6Gb/s SSD bay |
| System | |
| CPU | 2nd Generation Intel® Core™ i7/ i5/ i3 and Celeron® processor |
| Chipset | Intel® HM65 |
| Touch | |
| Touch Screen | 5-wire rsistive type with RS-232 interface |
| Touch Controller | PenMount DMC9000 / EETI EXC7200 & EXC5400 |
| Weight | |
| Weight | 3.8Kg |
| I/O Interface | |
| I/O Interface | 1 x AT/ATX switch |
| 1 x Audio((line-out)) | |
| 1 x Clear CMOS Button | |
| 1 x DC Input Jack | |
| 1 x HDMI™ | |
| 2 x LAN(GbE LAN (RJ-45)) | |
| 2 x USB 3.0 | |
| 1 x Mini USB 2.0(on front panel) | |
| 1 x Power Switch | |
| 2 x RS-232((DB-9)/(RJ-45)) | |
| 1 x RS-422/485((4-pin box header)) | |
| 1 x Reset Button | |
| 2 x USB 2.0 | |
| 1 x MicroSD card slot(on front panel) | |
Ordering Information
| AFL2-12A-HM65/R-R14 | 12.1" 600cd/m² XGA panel PC,802.11b/g/n,resistive touch screen,2M camera, microphone,Dual GbE LAN, R14 |
|---|---|
| AFL2-12A-HM65/PC-R14 | 12.1" 600cd/m² XGA panel PC, 802.11b/g/n wireless module, projective capacitive touchscreen,2M camera, microphone,Dual GbE LAN, R14 |
Package Contents
| Package Content |
|
|---|
