End of Life Notice
* Effective Date: 2022/07/22

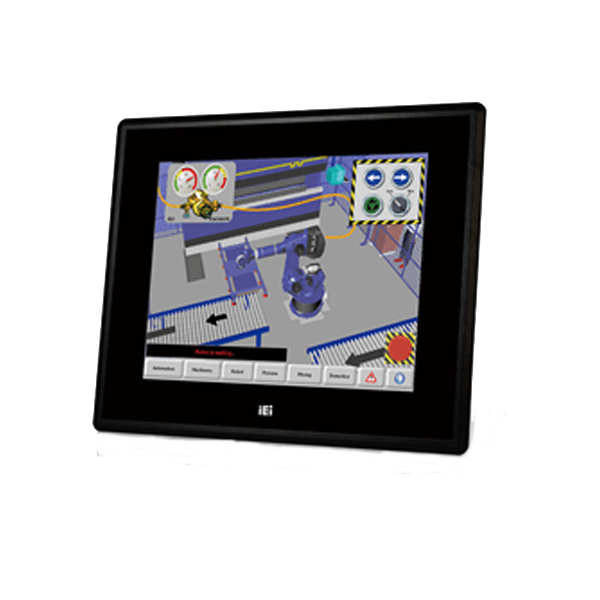

» Robust IP65 aluminum front bezel
» Aesthetic ultra-thin bezel for seamless panel mount installation
» DC input
» DVI / VGA flexible video input solution
» Resistive single touch
» Wide temperature support
Hardware Spec.
| Display | |
|---|---|
| Backlight MTBF(hrs) | 50000 |
| Brightness(cd/m2) | 800 |
| Contrast Ratio | 600:1 |
| LCD Size | 6.5”(4:3) |
| Max Resolution | 640 (W) x 480 (H) |
| Environment | |
| Humidity | 10% to 95% (non-condensing) |
| IP Level | IP 65 compliant front panel |
| Operating Temperature | -20°C ~ 60°C (with air flow) |
| Storage Temperature | -20°C ~ 70°C |
| I/O Interface | |
| I/O Ports and Switches |
1 x VGA (DB-15) 1 x DVI 1 x USB 2.0 (touch) 1 x RS-232 (reserved for resistive touch ATO) 1 x Lockable 12V DC jack |
| LCD | |
| LCD Color | 16.2M |
| Pixel Pitch (mm) | 0.207 x 0.207 |
| Viewing Angle (H-V) | 160° / 140° |
| Physical Characteristics | |
| Cutout Dimensions | 180 x 140 |
| Dimensions (LxWxH) (mm) | 191.8 x 154.36 x 42.88 |
| Power | |
| Power adapter | 12V DC |
| Touch | |
| Touch Controller | Penmount 6000 |
| Touch Screen | 5-wire resistive single touch window |
| Weight | |
| Weight | 1.1/2.6 Kg |
Ordering Information
| DM-F65A/R-R10 | 6.5" 800 cd/m² High luminance VGA LCD monitor with VGA, Aluminum die casting front panel, Black color,W/ USB resistive touch screen, R10 |
|---|
Package Contents
| Package Content |
|
|---|
