» Intel® Celeron® J1900 四核 SoC
» 坚固的 IP65 铝质前面板
» 薄边框的无缝面板式安装
» 投射电容式多点触摸和电阻式单点触摸选项
» 双全尺寸 PCIe 迷你卡扩展
» 9V~36V DC 宽范围 DC 输入
Hardware Spec.
| Display | |
|---|---|
| Backlight MTBF(hrs) | 50000 |
| Brightness(cd/m2) | 350 |
| Contrast Ratio | 800:1 |
| LCD Size | 17”(5:4) |
| Max Resolution | 1280 (W) x 1024 (H) |
| Environment | |
| Humidity | 10% to 95% (non-condensing) |
| IP Level | IP 65 compliant front panel |
| Operating Temperature | -10°C~50°C (14°F~122°F) |
| Storage Temperature | -20°C~60°C (-4°F~140°F) |
| I/O Interface | |

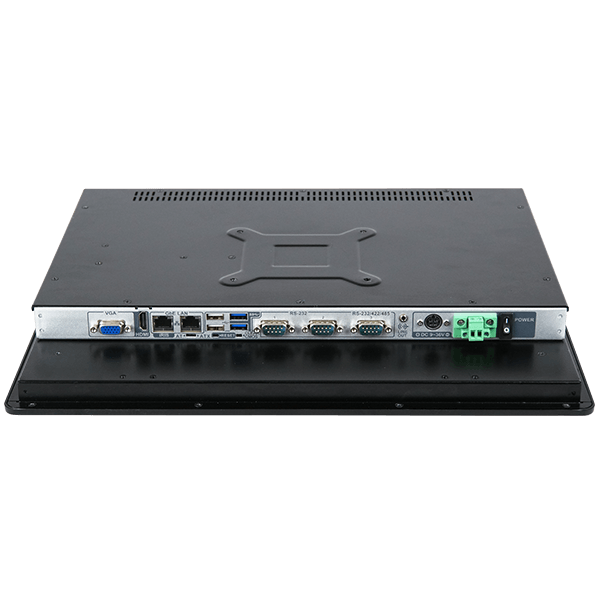

| I/O Ports and Switches |
2 x RJ-45 LAN Port 2 x USB 3.0 2 x USB 2.0 1 x HDMI™ output 2 x RS-232 1 x RS-232/RS-422/485 1 x VGA 1 x 9 V~36 V DC jack (4-pin) 1 x 9 V~36 V DC terminal block 1 x Line-out (PPC-F15B and PPC-17B only) 1 x Power switch |
| LCD | |
| LCD Color | 16.7M |
| Pixel Pitch (mm) | 0.26 x 0.26 |
| Viewing Angle (H-V) | 170° / 160° |
| Physical Characteristics | |
| Cutout Dimensions | 323 x 390 |
| Dimensions (LxWxH) (mm) | 341.4 x 408.4 x 51.8 |
| Power | |
| Power adapter | 9V~36V DC |
| Touch | |
| Touch Controller | 5-wire resistive single-touch type flat touchscreen 3H |
| Touch Screen | 2-point projected capacitive type touchscreen 6H |
| Weight | |
| Weight | 5 kg |
Ordering Information
| PPC-F17B-BTi-J1/2G/R-R13 | 17" 350 cd/m2 SXGA Panel PC with Intel® Celeron® Processor J1900, TDP 10W, 2GB RAM*1, support iRIS-2400, black color, 9-36V DC input, resistive touch window with AG coating, R13 |
|---|
Package Contents
| Package Content |
|
|---|
