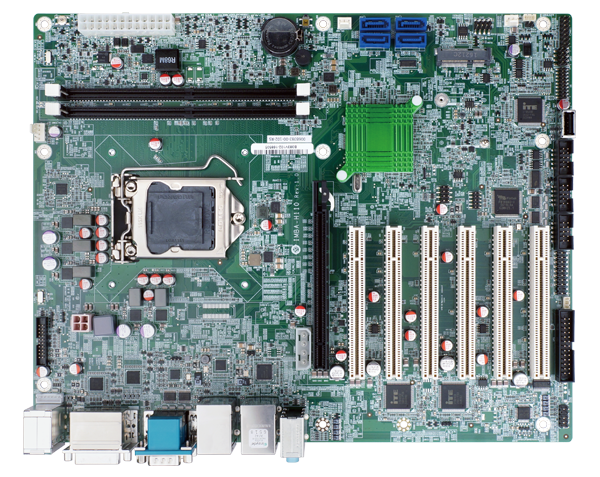

IMBA-H110

ATX motherboard supports 14nm LGA1151 6th Generation Intel® Core™ i7/i5/i3,
Celeron® and Pemtium® processor

» LGA 1151 Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor supported
» Dual-channel DDR4 2133 MHz
» Support dual displays with DVI-I/HDMI™+DP/iDP
» Support USB 3.0 and SATA 6Gb/s
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

System
CPU LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor
Chipset Intel® H110
Memory Two 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs
Memory Max. 64GB
Physical Characteristics
Dimensions (LxWxH) (mm) 244 X 305
Net Weight 700g
Storage
Storage 4 x SATA :6Gb/s
I/O Interface
Display Output 1 x DVI-I :up to 1920x1200@60Hz
1 x HDMI™ :1.4 (up to 4096x2160@24Hz)
1 x iDP :interface for HDMI™, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
Ethernet 2 x LAN :LAN1: Intel® I219LM PCIe controller
LAN2: Intel® I211 PCIe controller
Audio Description: Realtek ALC662 HD codec supports 5.1-channel
Line in :on rear IO
Line out :on rear IO
Mic :on rear IO
Front Audio
I/O Interface 2 x External RS-232
2 x Internal RS-232 :2x5 pin, p=2.54
1 x Internal RS-232/422/485 :2x5 pin, p=2.54
2 x External USB 2.0
4 x External USB 3.2 Gen1x1
3 x Internal USB 2.0 :1 X A type, 2 X 2x4 pin, p=2.54
1 x PS/2 :1x6 pin
1 x DIO :8-bit digital I/O (2x5 pin)
1 x LPT :2x13 pin, p=2.54
Expansion 1 x PCIe x16 :Gen3
6 x PCI Slot
1 x PCIe mini Card Slot :Full-size slot (support mSATA)
Other Features
TPM 2x10 pin
Power
Power Consumption 3.3V@1.53A, 5V@2.95A, 12V@8.38A, 5VSB@3.2A
(Intel® Core™ i7 6700K 4.0GHz CPU with 16GB (two 8GB) 2133 MHz DDR4 memory)
Environment
Operating Temperature -20°C ~ 60°C
Storage Temperature -30°C ~ 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

IMBA-H110-R10 ATX Motherboard supports 14nm LGA1151 6th Generation Intel® Core i7/i5/i3, Celeron® and Pemtium® processor , DDR4, Dual Independent Displays DVI-I/HDMI™/iDP, Dual®Intel GbE LAN, USB 3.0, SATA 6Gb/s, HD Audio and RoHS

Package Contents

Package Content
  • 1 x IMBA-H110 single board computer

  • 2 x SATA cable

  • 1 x I/O shielding

  • 1 x QIG
