End of Life Notice
* Effective Date: 2023/10/23

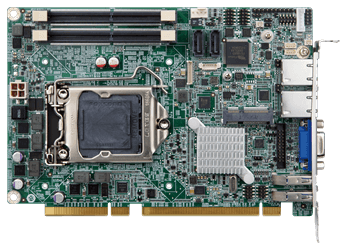

» PICMG 1.3 half-size CPU Card
» LGA 1151 Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor supported
» Two 260-pin 1600/2133MHz Dual-Channel DDR4 ECC & non-ECC SODIMM supported up to 32GB
» Supports dual independent display by VGA & internal DP pin header
» PCIe mini Supports mSATA & USB 2.0
» Intel® PCIe GbE with Intel® AMT 10.0 supported
» Supports RAID 0, 1 function via SATA 6Gb/s
» IEI jumper-less function
Hardware Spec.
| System | |
|---|---|
| CPU | LGA 1151 socket supports Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor |
| Memory | Two 260-pin 1866/2133 MHz dual-channel DDR4 ECC and non-ECC unbuffered SODIMMs |
| Memory Max. | 32GB |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 169 X 126 |
| Net Weight | 420g |
| Storage | |
| Storage | 2 x SATA :6Gb/s(RAID 0/1 support) |
| 1 x mSATA :SATA & USB signal | |
| I/O Interface | |
| Display Output | 1 x VGA :up to 1920x1200@60Hz |
| 1 x iDP :interface for HDMI™, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz) | |
| Ethernet |
2 x LAN :LAN1: Intel® I219LM Clarkville-V with Intel® AMT 11.0 support LAN2: Intel® I210 PCIe controller |
| I/O Interface | 2 x Internal RS-232/422/485 :2x5 pin, p=2.0 |
| 2 x External USB 3.2 Gen1x1 | |
| 4 x Internal USB 2.0 :2x4 pin, p=2.0 | |
| 1 x PS/2 :1x6 pin | |
| 1 x DIO :8-bit digital I/O (2x5 pin) | |
| Expansion |
1 x PCIe x16 :signal from CPU via golden finger (supports x16, or x8 + x8, or x4 + x4 + x8) |
| 1 x PCIe x4 :signal from Q170 via golden finger | |
| 1 x PCIe mini Card Slot :Full-size slot (support mSATA) | |
| Power | |
| Power Consumption |
5V@0.13A, 12V@7.89A, 3.3V@0.10A, 5VSB@0.20A (Intel® Xeon® E3-1275 v5 3.60 GHz with two 16 GB 2133 MHz DDR4 memory) |
| Power Supply | 5V/12V, Support AT/ATX mode |
| Environment | |
| Operating Temperature | -20°C ~ 60°C |
| Humidity | 5% ~ 95%, non-condensing |
| Certifications | |
| Safety & EMC | CE/FCC compliant |
Ordering Information
| HPCIE-C236-R10 | Half-size PICMG 1.3 CPU card supports LGA 1151 Intel® Xeon® E3, Core™ i3/Pentium®/Celeron® CPU with Intel® C236, ECC & non-ECC DDR4 SO-DIMM, VGA, iDP, Intel GbE, USB 3.0, mSATA, SATA, PCIe Mini, Intel® AMT and RoHS |
|---|
Package Contents
| Package Content |
|
|---|
