End of Life Notice
* Effective Date: 2023/10/23

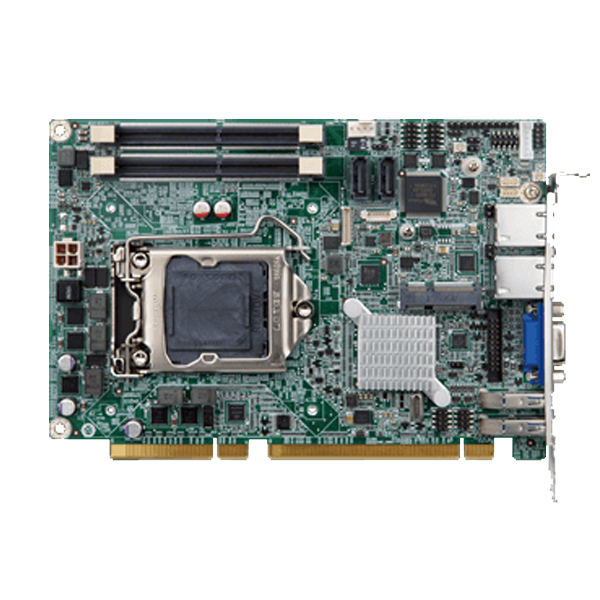

» PICMG 1.3 half-size CPU card
» LGA 1151 Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor supported
» Two 260-pin 1867/2133 MHz dual-channel DDR4 SO-DIMMs support up to 32 GB
» Supports dual independent display by VGA & internal DP pin header
» PCIe Mini supports mSATA & USB 2.0
» Intel® PCIe GbE with Intel® AMT 11.0 supported
» Supports RAID 0, 1 function via SATA 6Gb/s
» IEI jumper-less function
Hardware Spec.
| System | |
|---|---|
| CPU | LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processo |
| Memory | Two 260-pin 1866/2133 MHz dual-channel DDR4 non-ECC unbuffered SO-DIMM |
| Memory Max. | 32GB |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 169 X 126 |
| Net Weight | 420g |
| Storage | |
| Storage | 2 x SATA :6Gb/s(RAID 0/1 support) |
| 1 x mSATA :SATA & USB signal | |
| I/O Interface | |
| Display Output | 1 x VGA :up to 1920x1200@60Hz |
| 1 x iDP :interface for HDMI™, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz) | |
| Ethernet |
2 x LAN :LAN1: Intel® I219LM Clarkville-V with Intel® AMT 11.0 support LAN2: Intel® I211 PCIe controller |
| Audio | Description: Support 7.1-channel HD Audio by IEI AC-KIT-892HD kit |
| I/O Interface | 2 x Internal RS-232/422/485 :2x5 pin, p=2.0 |
| 2 x External USB 3.2 Gen1x1 | |
| 4 x Internal USB 2.0 :2x4 pin, p=2.0 | |
| 1 x PS/2 :1x6 pin | |
| 1 x DIO :8-bit digital I/O (2x5 pin) | |
| Expansion |
1 x PCIe x16 : signal from CPU via golden finger (supports x16, or x8 + x8, or x4 + x4 + x8) |
|
1 x PCIe x4 : signal from Q170 via golden finger 1 x Full/Half-size PCIe Mini card slot (supports mSATA) |
|
| Power | |
| Power Consumption |
5V@0.15A, 12V@8.39A, 3.3V@0.11A, 5VSB@0.21A (Intel® Core™ i7-6700K 4.0GHz with two 16 GB 2133 MHz DDR4 memory) |
| Power Supply | 5V/12V, Support AT/ATX mode |
| Environment | |
| Operating Temperature | -20°C ~ 60°C |
| Humidity | 5% ~ 95%, non-condensing |
| Certifications | |
| Safety & EMC | CE/FCC compliant |
Ordering Information
| HPCIE-Q170-R10 | Half-size PICMG 1.3 CPU card supports LGA 1151 Intel® Core™ i7/i5/i3/Pentium®/Celeron® CPU with Intel® Q170, DDR4 SO-DIMM, VGA, iDP, Intel GbE, USB 3.0, mSATA, SATA, PCIe Mini, Intel® AMT and RoHS |
|---|
Package Contents
| Package Content |
|
|---|
