End of Life Notice
* Effective Date: 2019/11/08

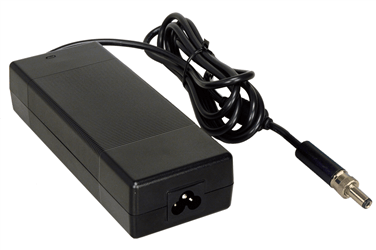

36 W AC/DC Adapter
Hardware Spec.
| General | |
|---|---|
| Efficiency | 86% |
| Storage temperature | -20ºC ~ 70ºC |
| Watt | 36 W |
| Environment | |
| Operating Temperature | 0ºC ~ 40ºC |
| Input | |
| Voltage | 90-264 VAC |
| Frequency | 47-63 Hz |
| Output | |
| Voltage | 12V |
Ordering Information
| 63040-010036-111-RS | Adapter Power;FSP;FSP036-RBBN2;9NA0362307;;Vin:90~264VAC;36W;Dim:37.8*89.8*27.0mm;Plug=9.5mm;Cable=1500mm;Erp(NO LOAD 0.1W);Vout:12VDC;Φ2.5/Φ5.5;CCL;RoHS |
|---|---|
| 63040-010036-121-RS | Adapter Power;FSP;FSP036-RBBN2;9NA0362306;;Vin:90~264VAC;36W;Dim:37.8*89.8*27.0mm;Plug=7.5mm;Cable=1500mm;Erp(NO LOAD 0.1W);Vout:12VDC;Φ2.5/Φ5.5/lock;CCL;RoHS |
