End of Life Notice
* Effective Date: 2018/05/18
» 1-channel HDMI™/DP/DVI-I/YPbPr/3G-SDI input with H.264 hardware compression and 1-channel HDMI™ output
» High quality video recording up to 1080p30
» HDMI™ output supports video preview up to 1080p60, so you can watch video while recording or editing
» Provides DirectShow filter
» Equipped with video scaler for PIP, OSD, cropping (optional)
» Windows/Linux OS supported
Hardware Spec.

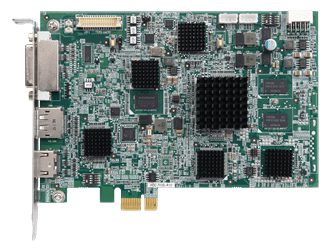

| Appearance | |
|---|---|
| Dimension | 155 mm x 111 mm |
| Audio Processing | |
| Audio Compression | MPEG4-AAC |
| Audio Sampling Frequencies | 44.1k, 48k Hz |
| Recording Data rate | 128kbps |
| Capture Interface | |
| Audio Input | 1 x Audio Input Channel |
| 1 x Audio Input-HDMI™(stereo) | |
| Audio Output | 1 x Audio Output Channel |
| 1 x Audio Output-HDMI™(stereo) | |
| Interface Type | 1 x PCIe x 1 |
| Video Input | 1 x Video Input Channel |
| 1 x Video Input-3G-SDI | |
| 1 x Video Input-DP | |
| 1 x Video Input-DVI-I | |
| 1 x Video Input-HDMI™ | |
| 1 x Video Input-YPbPr | |
| Video Output | 1 x Video Output Channel(1080p60) |
| 1 x Video Output-HDMI™ | |
| Environment | |
| Operating Temperature | 0°C ~ 60°C (32° ~ 140°F), non-condensing |
| Functionality | |
| Multiple Card Support | 4 cards, 4 channels |
| Scaling | Video scaling support, OSD, PIP, Cropping |
| Others | |
| Power Consumption | 15W |
| Software Support | |
| SDK | 1 x Linux |
| 1 x Windows | |
| OS Support | 1 x Linux Ubuntu(16.04 (64-bit) (Kernel version: 4.4.0-21-generic)) |
| 1 x Microsoft Windows 7 32-bit | |
| 1 x Microsoft Windows 7 64-bit | |
| System Requirement | |
| CPU | Intel® Core™2 Duo 2.4GHz or above |
| Memory | 2GB or more |
| Video Processing | |
| Recording Data rate | 1~30Mbps |
| Recording Formats |
1920 x 1080 24p/25p/30p 1280 x 1024 30p 1280 x 800 60p 1280 x 768 60p 1280 x 720 50p/60p 1024 x 768 60p 800 x 600 60p 720 x 576 50p 720 x 480 60p 640 x 480 60p |
| Video Compression | 1 x Hardware Encoder(H.264/AVC High Profile Level 4.1) |
| Video Input Resolution |
1920 x 1080 24p/25p/30p/50p/60p 1920 x 1080 60i/59.94i/50i 1280 x 1024 30p 1280 x 800 60p 1280 x 768 60p 1280 x 720 50p/60p 1024 x 768 60p 800 x 600 60p 720 x 576 50p 720 x 480 60p 640 x 480 60p |
Ordering Information
| HDC-701EL-R10 | PCI Express Video/Audio Capture Card with HDMI™/DVI/DP/YPbPr/SDI input and one HDMI™ output,1920x1080@30p, and H.264 codec transcoding |
|---|
Package Contents
| Package Content |
|
|---|
