End of Life Notice
* Effective Date: 2018/07/17
» Single card 4-channel composite video (NTSC/PAL) solution
» PCI Rev 2.1 compliance interface
» Compatible with Windows 98 SE, ME, 2000, XP / Linux kernel 2.4
» NTSC: Up to 120 fps per channel
» Supports multiple cards up to 16 channels video/audio input
» External GPIO daughter board with 4 inputs and 4 outputs (optional)
» SDK available for customer to create customized applications
Hardware Spec.

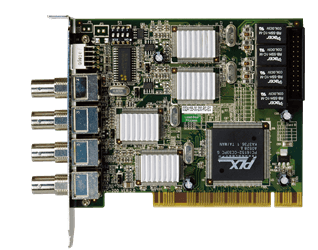

| Appearance | |
|---|---|
| Dimension | 119.91 mm x 106.68 mm |
| Capture Interface | |
| Alarm I/O | GPIO daughter board with 4 inputs and 4 outputs(IVC-200G-RS-R20 only) |
| Card ID | DIP switch selectable with LED for ID indication |
| Interface Type | 1 x PCI(Rev 2.1 compliance) |
| Video Input | 4 x Video Input Channel(composite video NTSC, PAL and SECAM auto sensing) |
| 4 x Video Input-BNC | |
| Environment | |
| Operating Temperature | 0°C ~ 60°C (32°F~140°F), non-condensing |
| Functionality | |
| Multiple Card Support | 4cards, 16 channels, QVGA (320 x 240), Total Frame (NTSC/PAL):480/400 fps |
| Video Loss Detection | yes |
| Others | |
| Power Consumption | 15W, 3A@5V (with relay) |
| Software Support | |
| SDK | 1 x Windows |
| 1 x Linux | |
| OS Support | 1 x Microsoft Windows XP |
| Operating System(Windows 98 ,SE, ME) | |
| 1 x Linux Ubuntu | |
| 1 x Linux Kernel(2.4) | |
| 1 x Microsoft Windows 2000 | |
| System Requirement | |
| CPU | x86 compatible computer |
| Graphic Card | DirectX compatible VGA card supporting YUV overlay mode |
| Video Processing | |
| Video Chipset | 4 x Conexant Fusion BT878A |
| Video Compression | 1 x Software Compression |
| Video Input Resolution |
720 x 480 (NTSC/PAL/SECAM) 704 x 576 (PAL/SECAM) 720 x 576 (PAL/SECAM) 720 x 480 (PAL/SECAM) 720 x 288 (NTSC/PAL/SECAM) 720 x 240 (NTSC/PAL/SECAM) 640 x 480 (NTSC/PAL/SECAM) 640 x 288 (NTSC/PAL/SECAM) 640 x 240 (NTSC/PAL/SECAM) 352 x 288 (NTSC/PAL/SECAM) 352 x 240 (NTSC) *NTSC: Up to 120 fps per channel *PAL/SECAM: Up to 100 fps per channel |
Ordering Information
| IVC-200-RS-R20 | 4 channels Video Capture Card;NO GPIO,RoHS |
|---|---|
| IVC-200G-RS-R20 | 4 channels Video Capture Card;With GPIO,RoHS |
Package Contents
| Package Content |
|
|---|
