End of Life Notice
* Effective Date: 2021/09/07

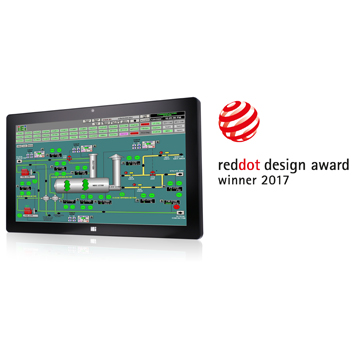

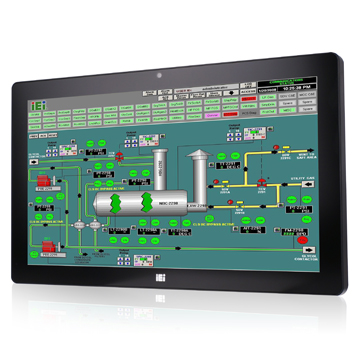

» W19” light industrial interactive panel PC
» 9 V ~ 30 V wide range DC power input
» Selectable AT/ATX power mode
» Built-in speakers
» One mSATA slot
» IP64 compliant front panel
» IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)
Hardware Spec.
| Communication | |
|---|---|
| Bluetooth | Bluetooth v4.0 (M.2 slot) |
| Wireless | IEEE 802.11a/b/g/n/ac |
| Environment | |
| Humidity | 10% to 95% (non-condensing) |
| IP Level | IP 64 compliant front panel |
| Operating Temperature | -20°C~50°C |
| Safety & EMC | CE / FCC |
| Storage Temperature | -20°C~60°C |
| I/O Interface | |
| Audio | AMP 3W + 3W (internal speaker) |
| Audio Codec | ALC892 |
| Ethernet | 2 x Intel® I211-AT PCIe GbE controller |
| I/O Ports and Switches |
1 x RS-232 by DB-9 (RI/5V/12V) 1 x RS-232/422/485 by DB-9 (RI/5V/12V) 2 x GbE LAN 4 x USB 3.0 1 x HDMI™ output 1 x Power switch 1 x Reset button 1 x AT/ATX switch 1 x 9-30V lockable power jack |
| RAM | Two 260-pin DDR4 SO-DIMMs (system max.32GB) |
| LCD | |
| Backlight MTBF | 30,000 (LED backlight panel) |
| Brightness (cd/m2) | 250 |
| Contrast Ratio | 1000:1 |
| LCD Color | 262K |
| Pixel Pitch (mm) | 0.240 (H) x 0.240 (V) |
| Resolution | 1366 x 768 (16:9) |
| Size | 18.5” |
| Viewing Angle (H-V) | 170º/160º |
| Other Features | |
| Camera | 2-megapixel with low light function |
| Microphone | digital microphone |
| OSD Function | Software OSD |
| System Cooling | Fanless |
| Physical Characteristics | |
| Color | Black C |
| Construction Front Panel | PC + ABS Plastic |
| Cutout Dimensions | 443 x 261 (W x H) (mm) |
| Dimensions (LxWxH) (mm) | 470 x 290 x 70 |

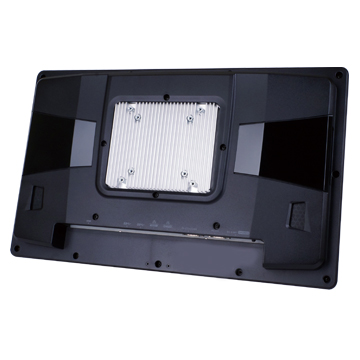

| Mounting |
Panel, Wall, Rack, Stand and Arm VESA 75mm x 75mm / 100mm x 100mm |
| Net Weight | 7.3Kg |
| Power | |
| Power consumption | 12V@7.1A |
| Power Requirement | 9 V ~ 30 VDC |
| System | |
| Cooling method / System Fan | Fanless |
| CPU | Intel® Core™ i5 and Celeron® ULT Processor |
| Storage |
1 x 2.5” SATA 3Gb/s HDD bay 1 x M.2 M key PCIe storage (2280 or 22110) 1 x mSATA slot |
| Touch | |
| Touch Controller | EETI EXC3180 |
| Touch Screen | Projected capacitive type with USB interface |
| Weight | |
| Weight | 7.3/10Kg |

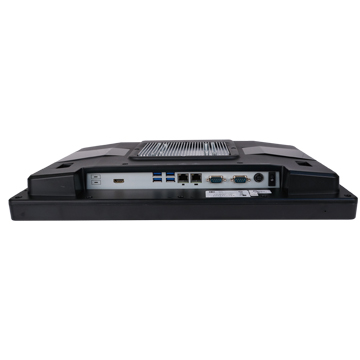

| I/O Interface | |
| I/O Interface | 1 x HDMI™(output) |
| 4 x USB 3.0 | |
| 1 x Power In(9-30V lockable power jack) | |
| 1 x RS-232(DB-9 (RI/5V/12V)) | |
| 2 x LAN(Gbe) | |
| 1 x Reset Button | |
| 1 x Power Switch | |
| 1 x AT/ATX switch | |
| 1 x RS-422/485(DB-9 (RI/5V/12V)) | |
Ordering Information
| AFL3-W19C-ULT3-i5/PC/4G-R10 | Wide 18.5” 250 cd/m² 1366x768 Panel PC with Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone,R10 |
|---|---|
| AFL3-W19C-ULT3-C/PC/4G-R10 | Wide 18.5” 250 cd/m² 1366x768 Panel PC with withIntel® 14nm 6th Generation Mobile Celeron®3955U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone,R10 |
Package Contents
| Package Content |
|
|---|
