End of Life Notice
* Effective Date: 2018/09/04
» RoHS compliant design
» Stylish front panel with keylock
» One 5.25” and one 3.5” drive bays
» Two 8 cm cooling fans with easy replaceable fan filter
» Lockable door prevents unauthorized access
Hardware Spec.
| Color | |
|---|---|
| Color | W: White/B: Black |
| Dimensions | |
| Dimensions | 576.9 mm x 431 mm x 88 mm |
| Environment | |
| Humidity | 10% ~ 90% |
| Operating Temperature | 0°C ~ 50°C |
| Expansion Slots | |
| Expansion Slots | 6 slots |
| Form factor | |
| SBC Form Factor | Full-size, slot CPU card |
| Indicator&Buttons | |
| Buttons | Power switch, reset button |
| Indicators | Power, HDD |
| Physical Characteristics | |
| Construction | Heavy duty metal with plastic front panel |
| System | |
| Cooling method / System Fan | 2 x 8 cm |
| Drive Bays |
1 x Front accessible 3.5” 1 x 3.5” HDD (internal) 1 x 5.25” |
| Weight | |
| Weight | 7.8 kg/11.8 kg |
Ordering Information

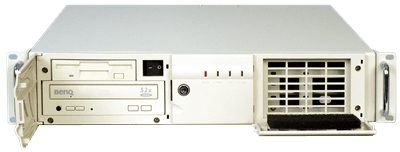

| RACK-2100GB/A130B | 2U 6-slot Full-size for PICMG 1.3 SBC,Black,2x 8cm fan,w/ACE-A130B-R10(300W ATX model) |
|---|
