End of Life Notice
* Effective Date: 2018/07/02

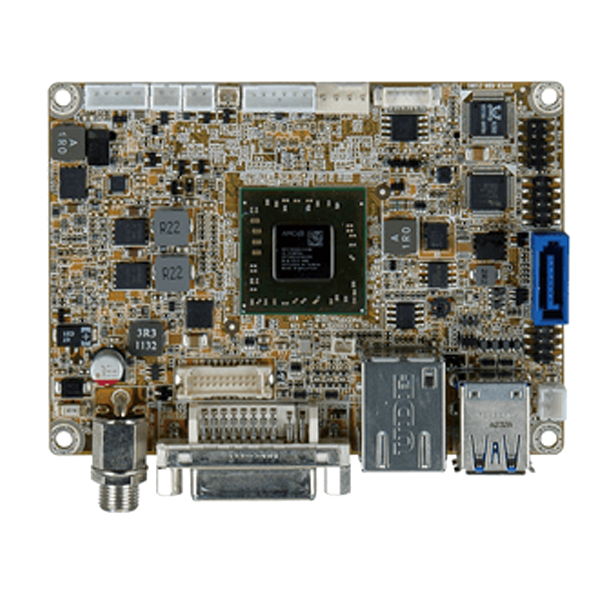

» Pico-ITX form fator with AMD® Embedded G-Series SoC supports DDR3/DDR3L up to 1600 MHz memory
» 12V only single voltage design for AT/ATX power by DC power jack
» DVI-I and 18-bit singel-channel LVDS support for dual display
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
Hardware Spec.
| Display | |
|---|---|
| Display |
DVI-I (DVI-D up to 1920x1200@60Hz, VGA up to 2048x1536@60Hz) 18-bit single-channel LVDS (up to 1600x900@60Hz) |
| Environment | |
| Humidity | 5% ~ 95%, non-condensing |
| Operating Temperature | 0°C ~ 60°C |
| I/O Interface | |
| Audio |
Realtek AL662 HD Audio codec 1 x Analog audio (2x5 pin) |
| Ethernet | LAN: Realtek RTL8111E controllers with ASF2.0 supported |
| I/O Interface | |
| I/O Interface | 2 x USB 3.0 |
| 1 x Internal RS-232 | |
| 2 x Internal USB 2.0 | |
| Power | |
| Power consumption | +12V@1.45A (AMD GX-415GA 1.5GHz CPU with one 2GB 1333 MHz DDR3 memory) |
| System | |
| CPU |
GX-415GA on-board SoC (1.5GHz, quad-core, 2MB cache, TDP=15W) GX-210HA on-board SoC (1.0GHz, dual-core, 1MB cache, TDP=9W) (support fanless solution) GX-420CA on-board SoC (2.0GHz, quad-core, 2MB cache, TDP=25W) GX-217GA on-board SoC (1.65GHz, dual-core, 1MB cache, TDP=15W) |
| CPU Socket | On Board |
| Memory Max. |
One 204-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMM supports up to 8GB |
| Storage | 1 x SATA 6Gb/s with 5V SATA power connector |
| Watchdog Timer | |
| Watchdog Timer | Software programmable, support 1~255 sec. system reset |
Ordering Information
| HYPER-KBN-4151-R10 | PICO-ITX SBC with AMD G-Series GX-415GA SoC processor,DDR3 DVI-I/LVDS,GbE,USB 3.0,SATA 6Gb/s,HD Audio and RoHS |
|---|---|
| HYPER-KBN-2101-R10 | PICO-ITX SBC with AMD G-Series GX-210HA SoC processor,DDR3 DVI-I/LVDS,GbE, USB 3.0,SATA 6Gb/s,HD Audio and RoHS |
Package Contents
| Package Content |
|
|---|
